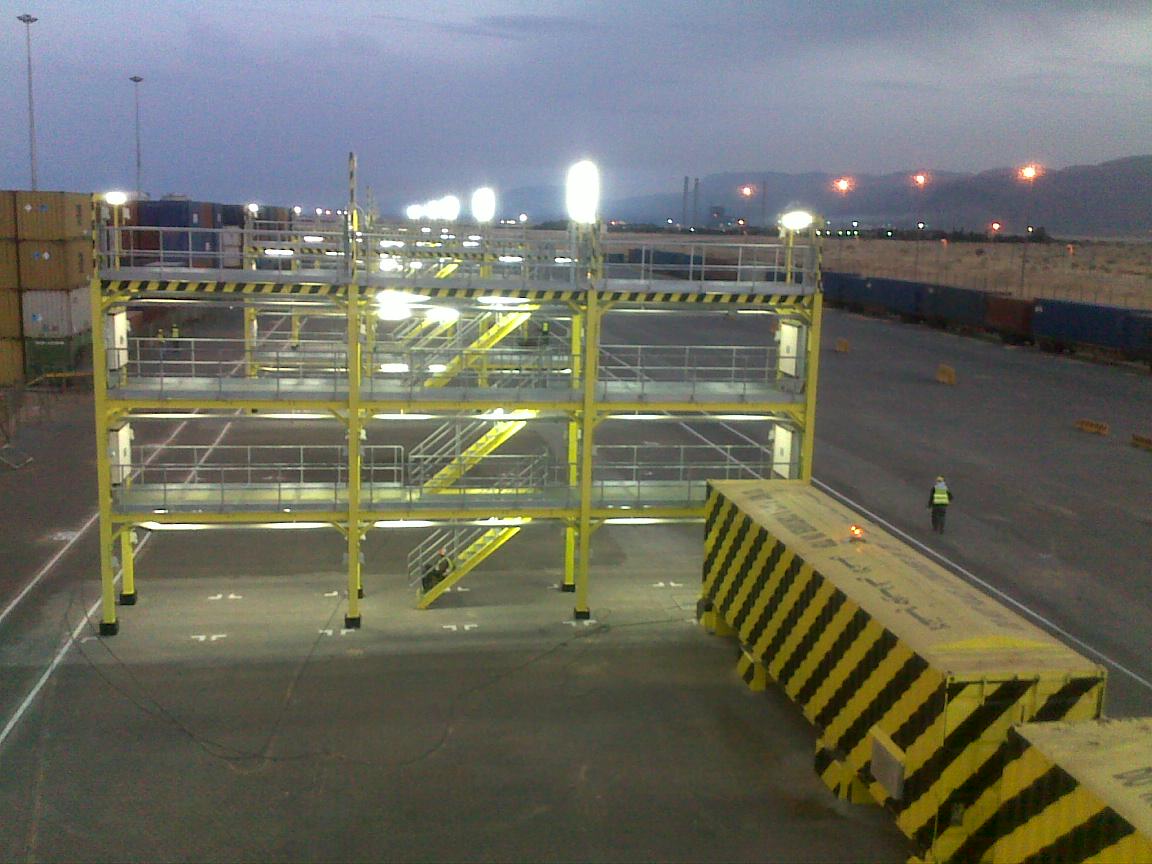

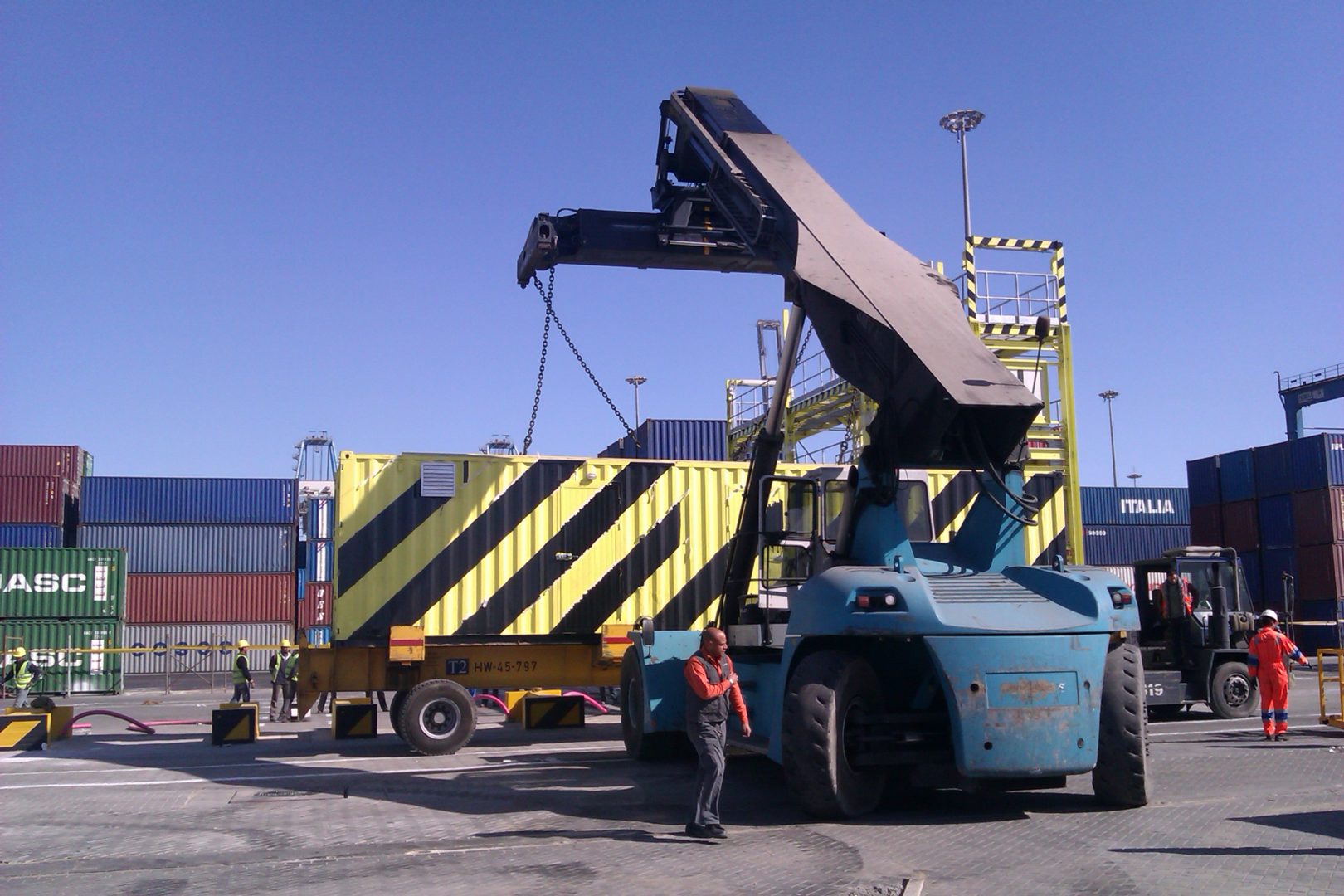

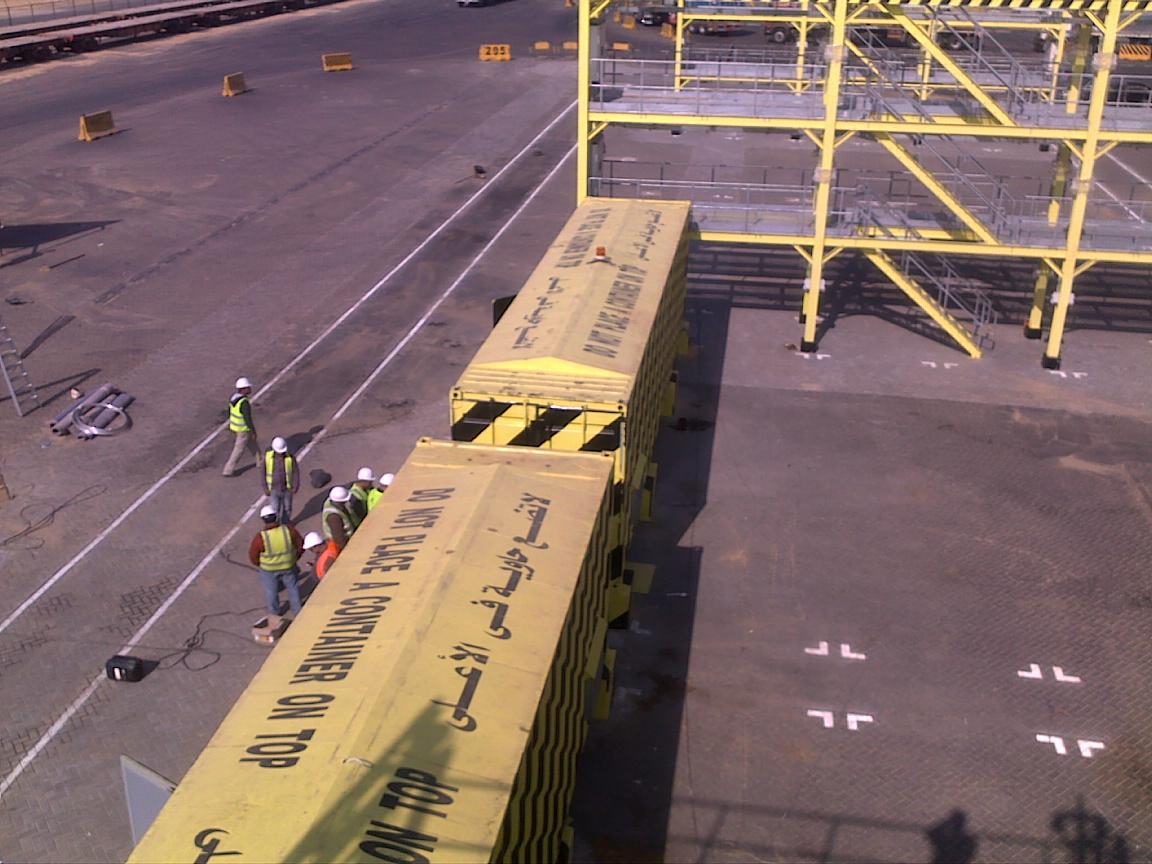

Four containerized substations, DPW Sokhna Basin 1, Sokhna Port.
_
Project Information:
Manager:
Moharram Bakhoum (ACE)
Architect:
ATMS
ECCT
_
Project Description:

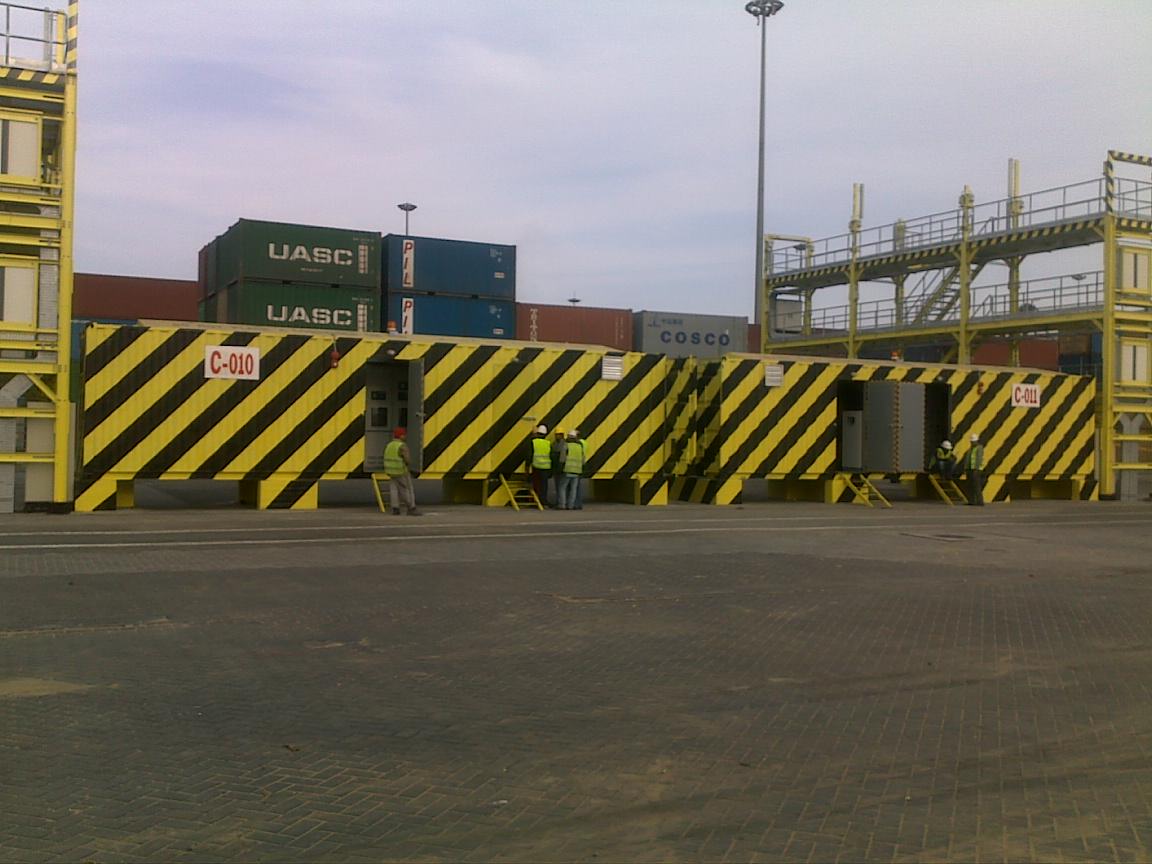

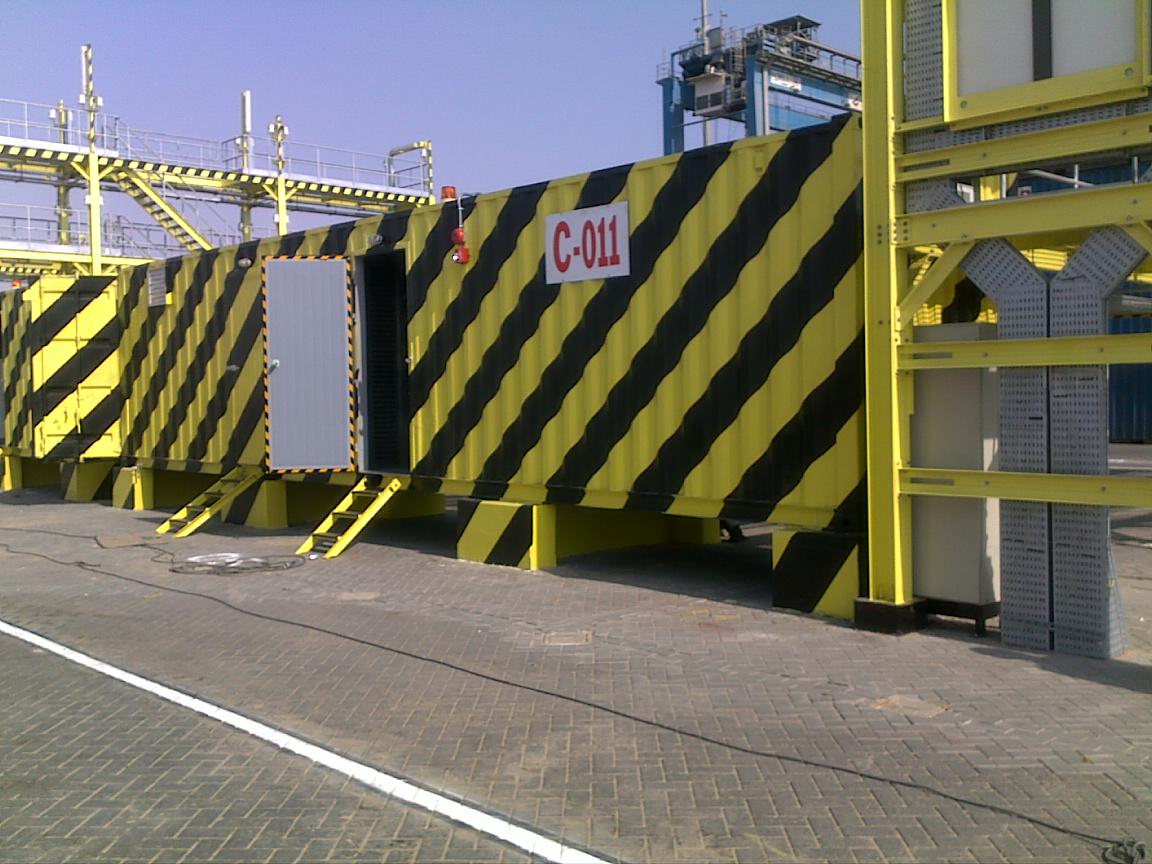

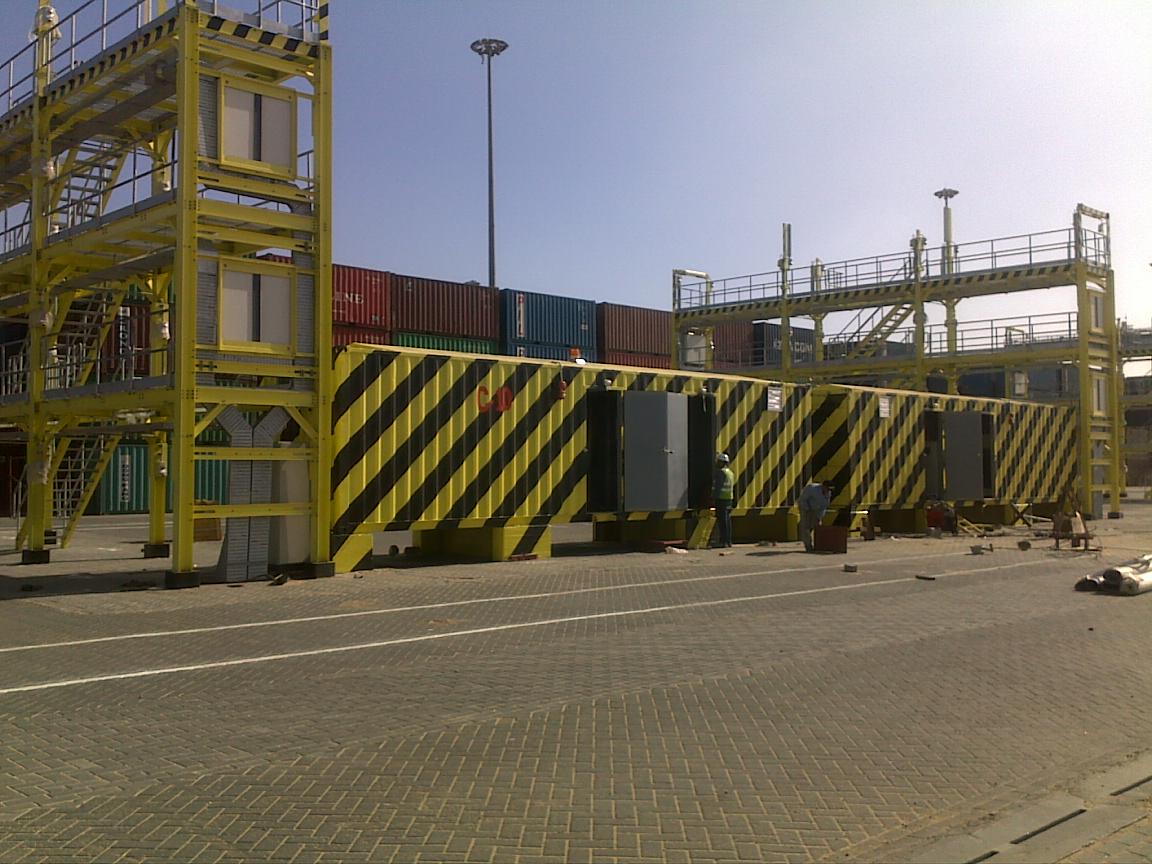

Manufacturing 4 Containerized substation using standard container 40 feet, each consists of three rooms:

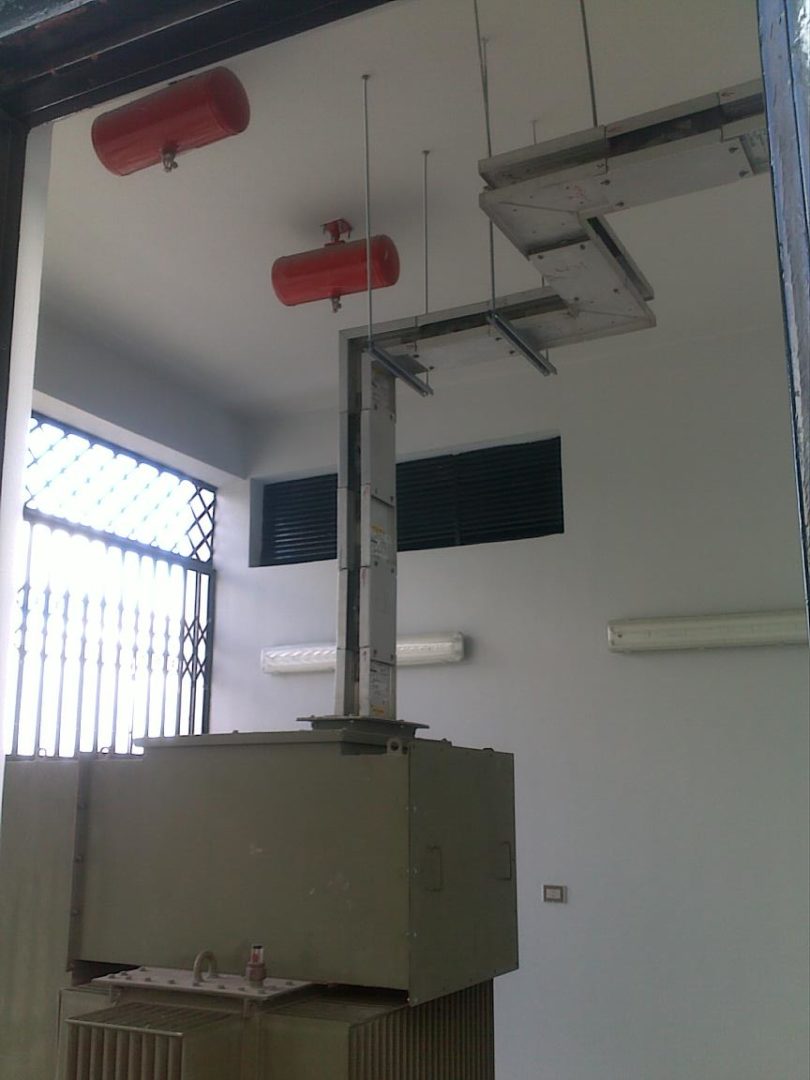

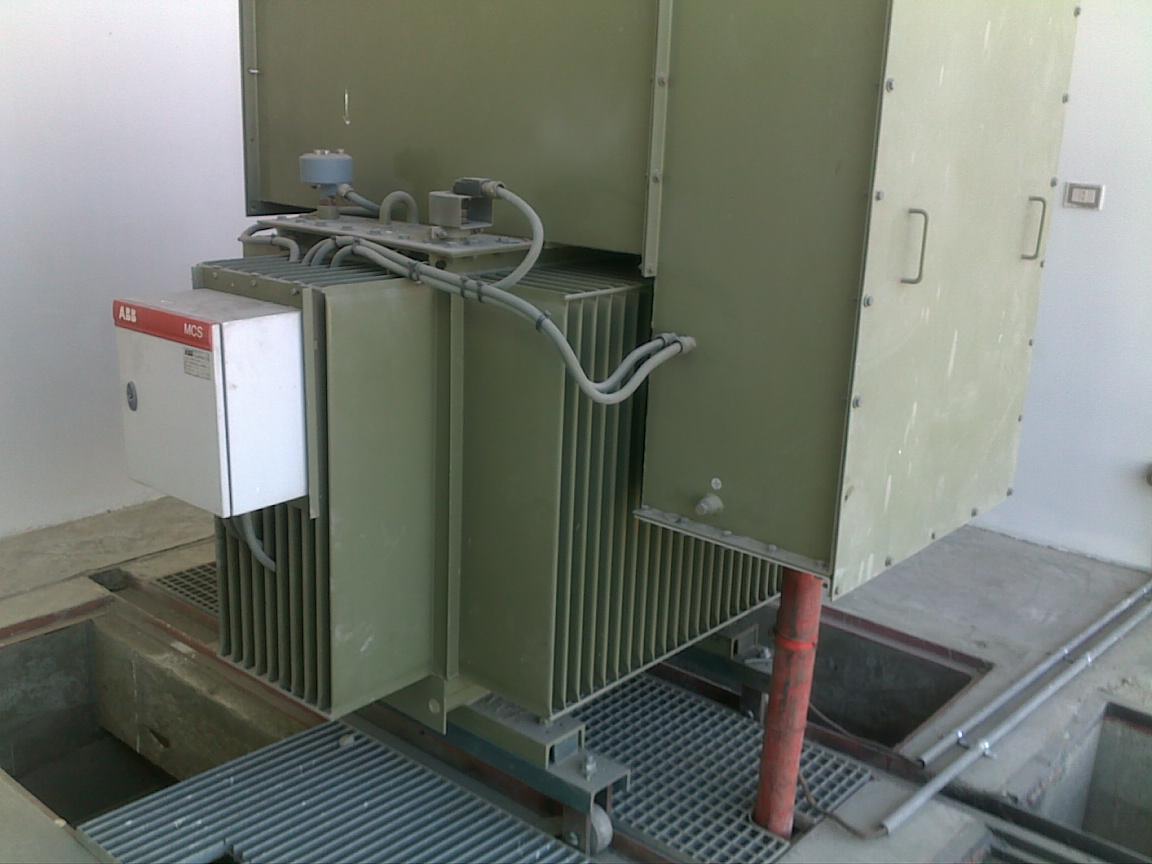

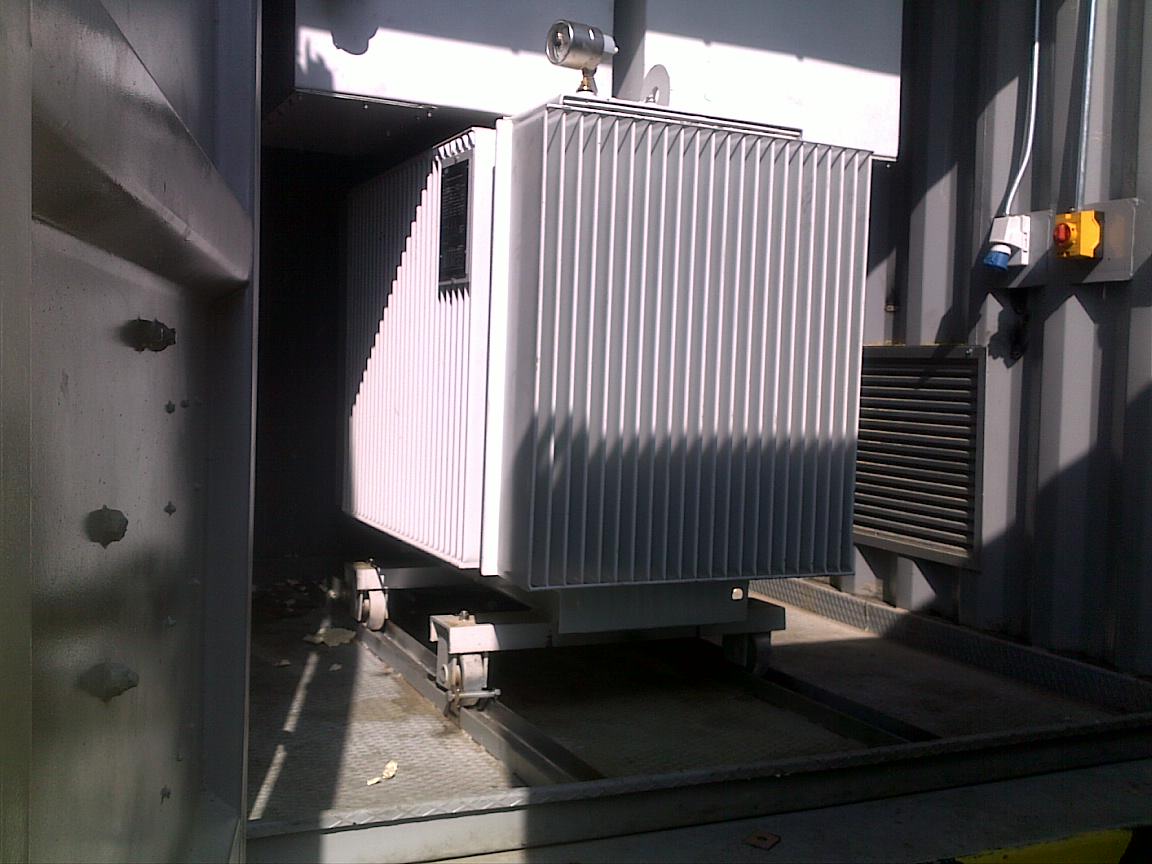

- Transformer room: equipped with 1000KVA transformer 22KV/400V & Automatic fire extinguisher.
- MV room: equipped with MV distributer switchgear Remote Terminal Unit (RTU).

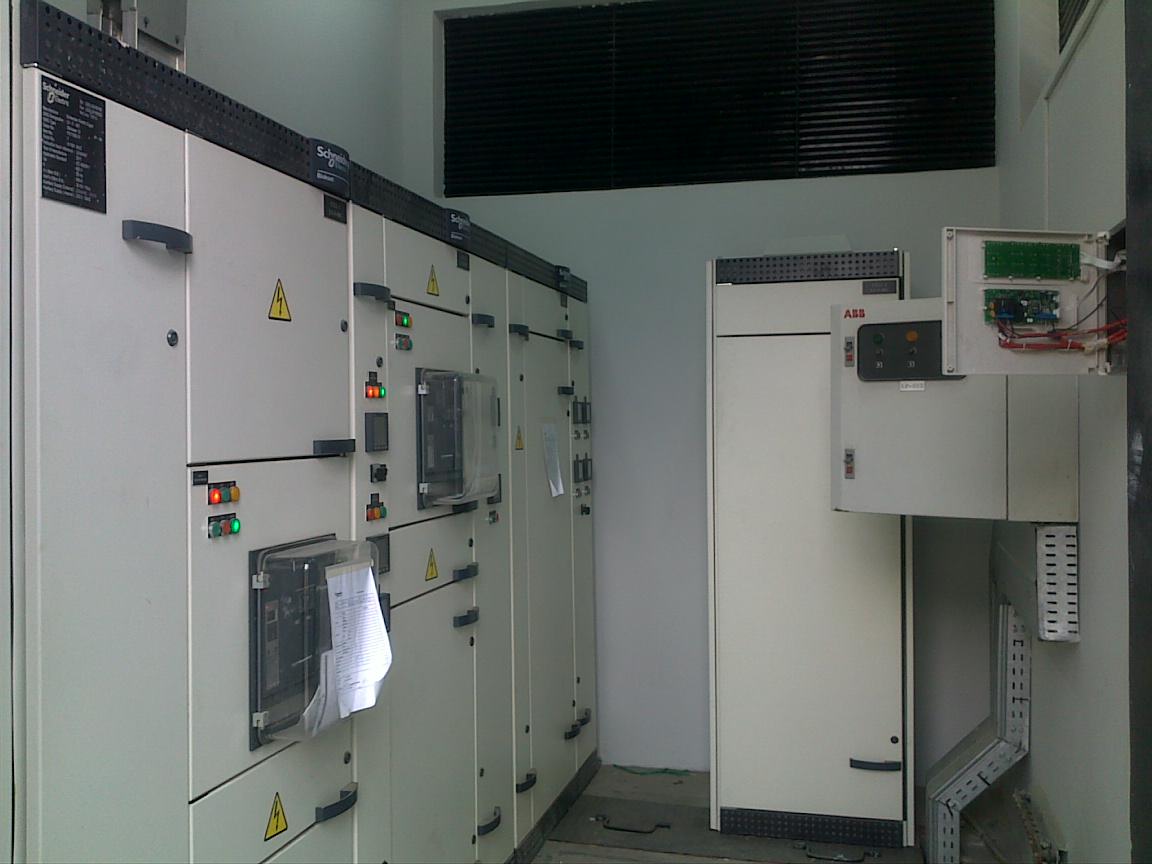

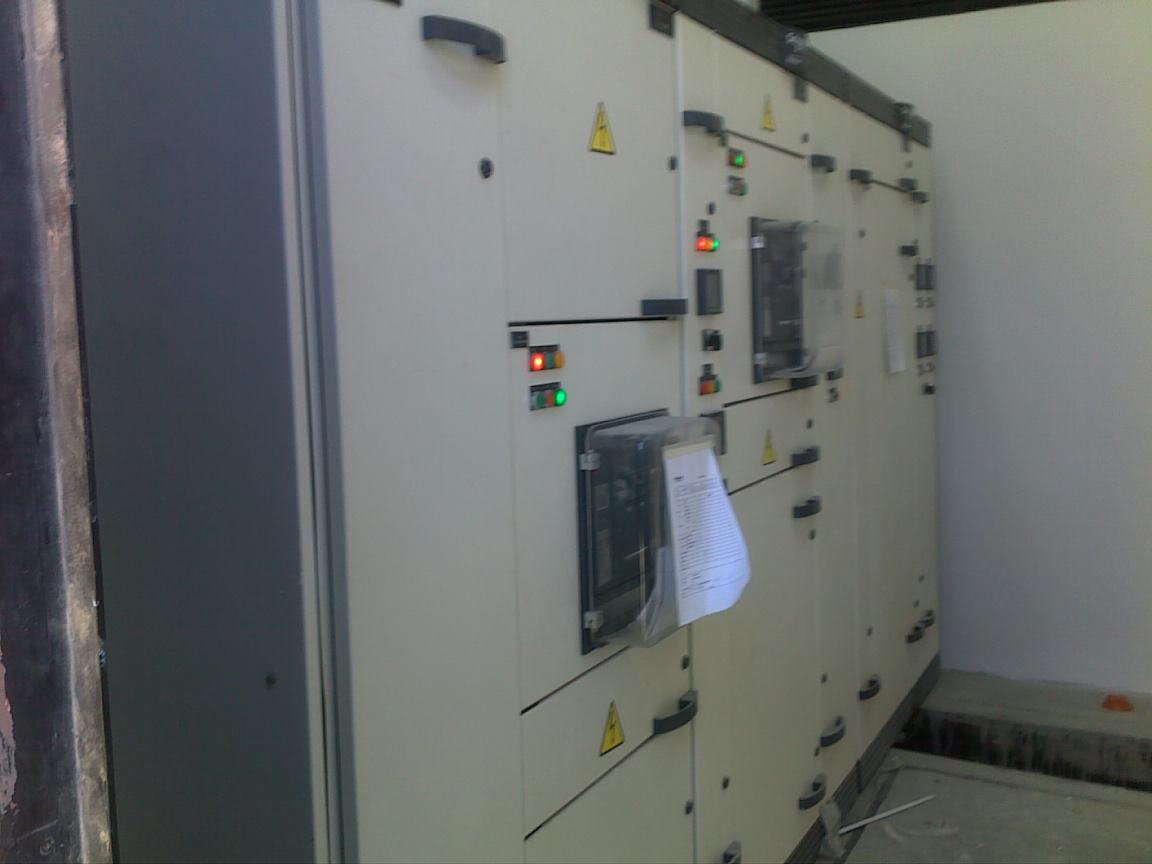

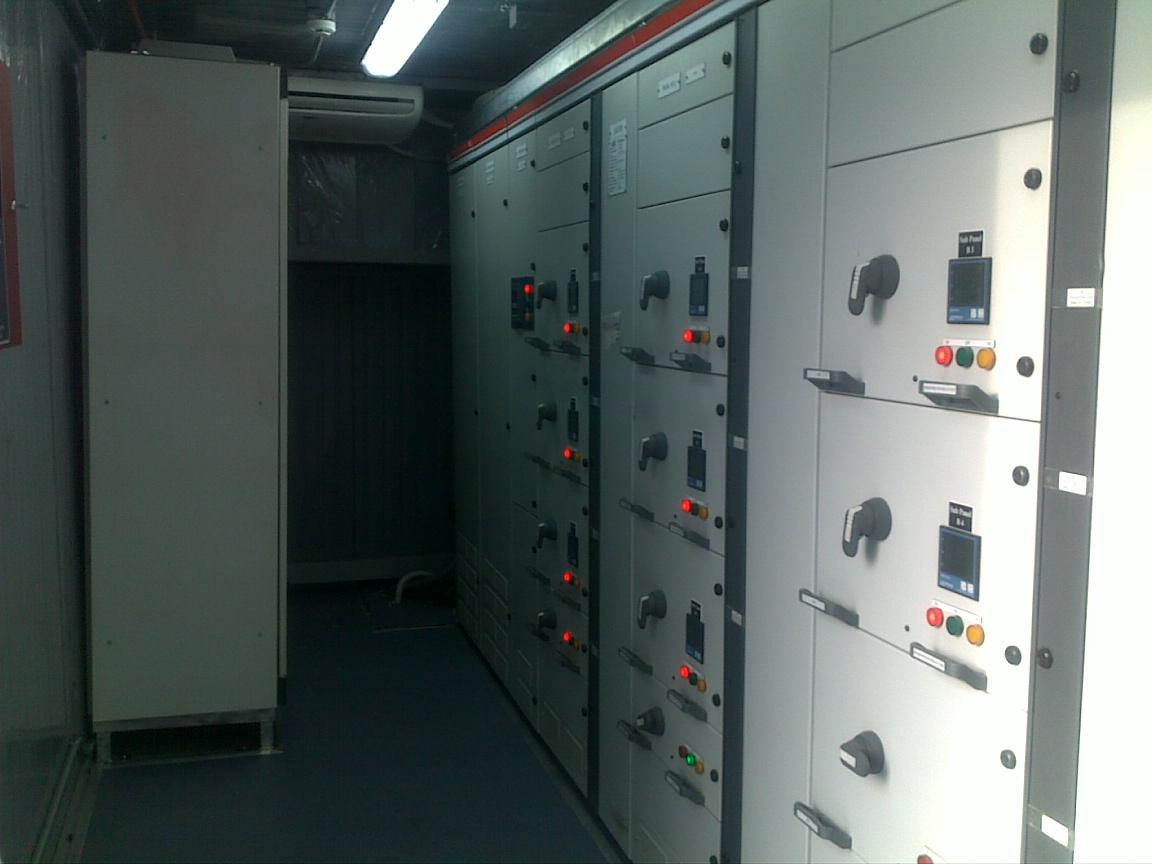

- LV room: equipped with LV distributer switchgear which contain (2*1600A) incoming from transformer and generator and connected with ATS.
SCADA SYSTEM: All MV, LV equipment are connected to Schneider CITECT Scada System monitoring various signals and alarms from the Containerized Substation to Scada control room within 0.5 second
