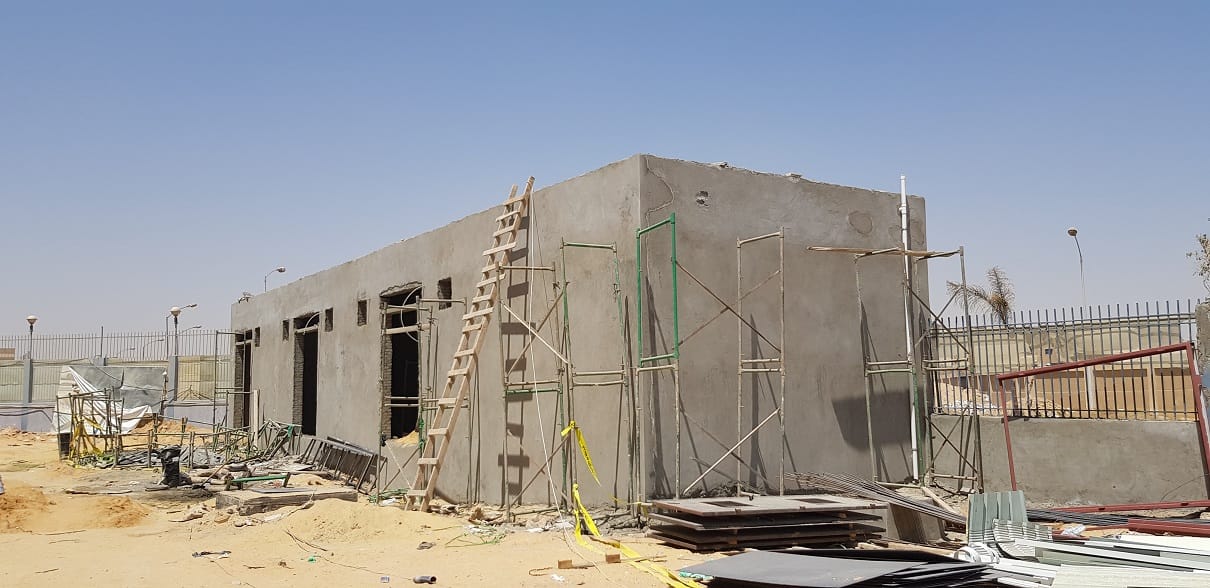

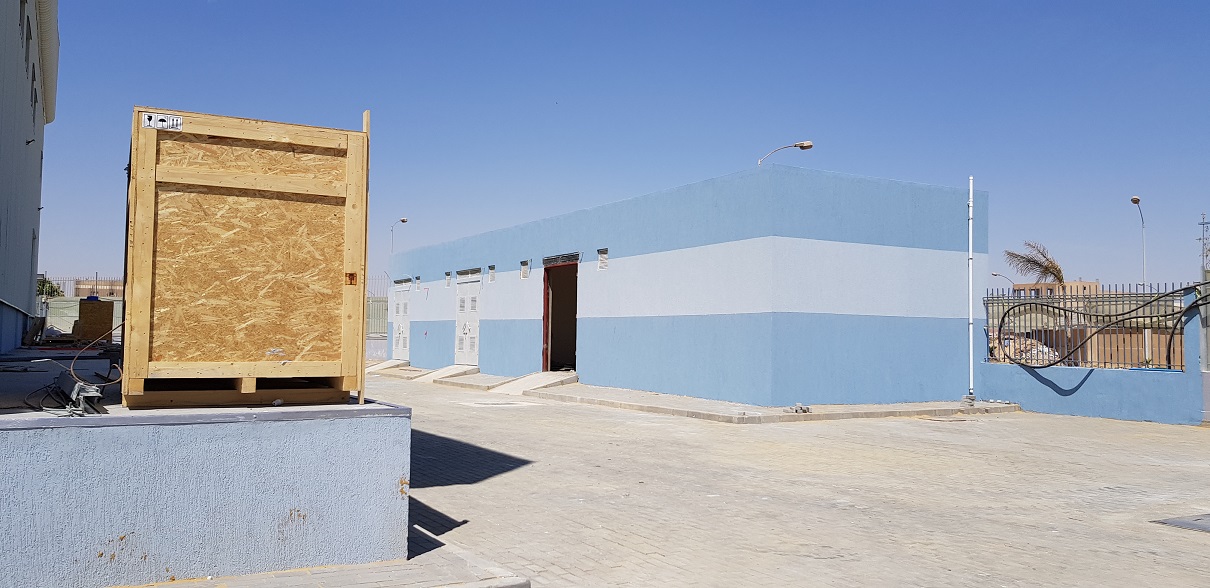

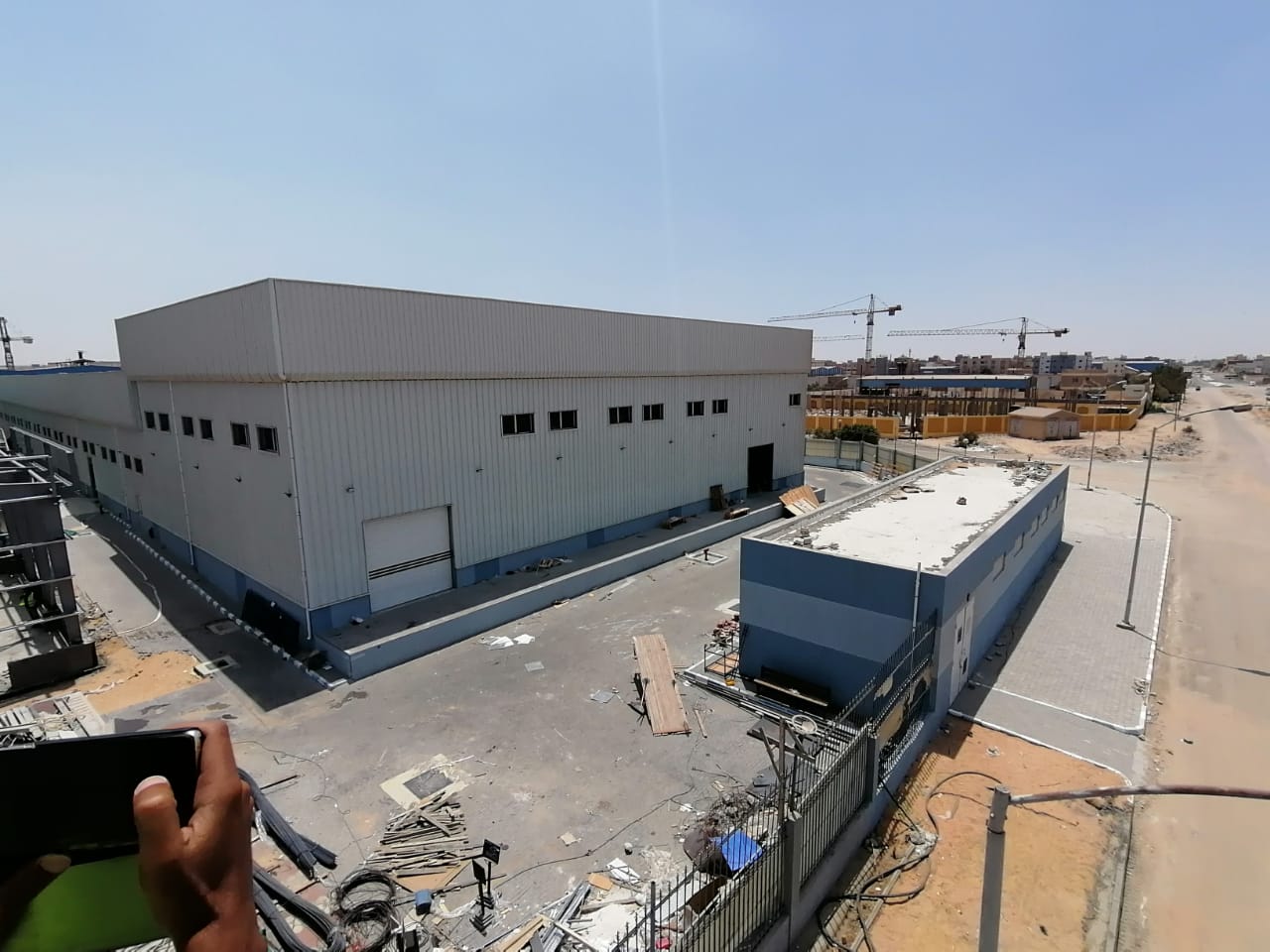

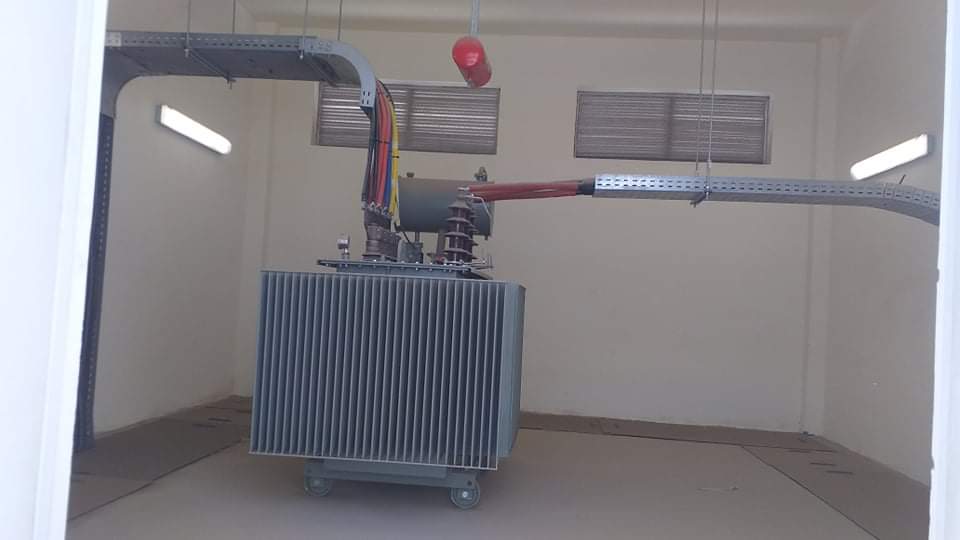

Electrical Room for the New Factory, Sumitomo Electric Wiring Systems Egypt –6th October.
_
Project Information:
Manager:
PACER Consultants
Architect:
PACER Consultants
ECCT
_
Project Description:

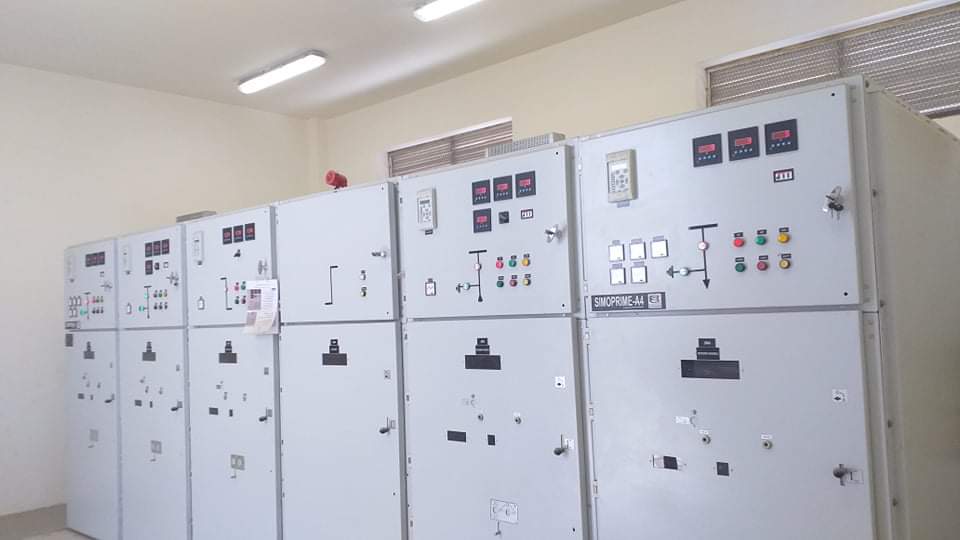

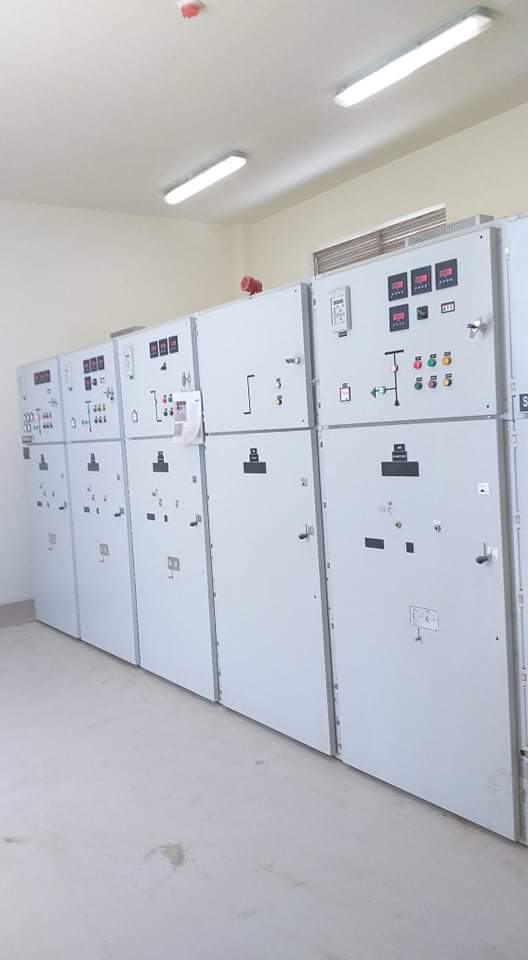

- MV Distributer with 6 cells 22 KV ABB.

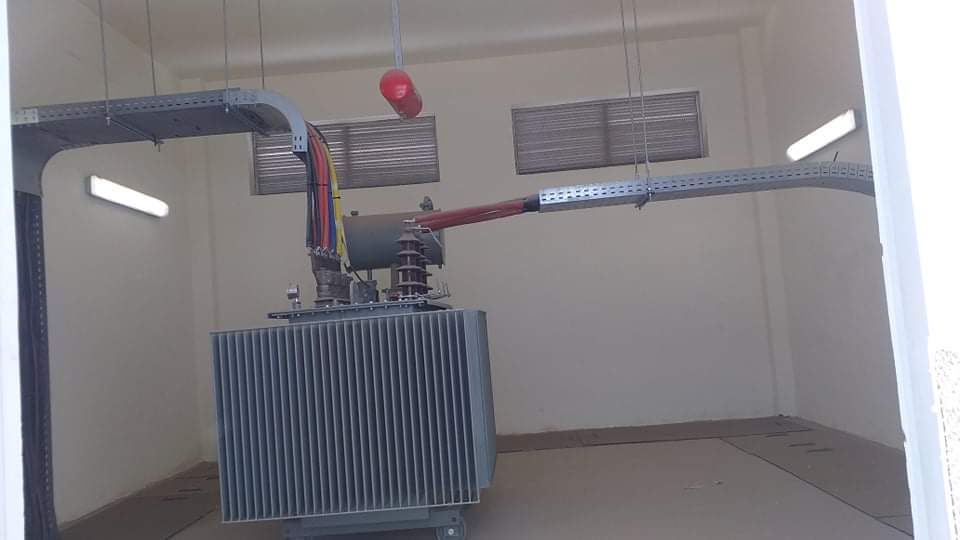

- Transformer 1500 KVA OIL 22KV/400V ABB.
- MV Ring Main unit (4+0) including current and voltage transformers ABB.
- MV Cable AL 3*240 mm2 18130 KV.

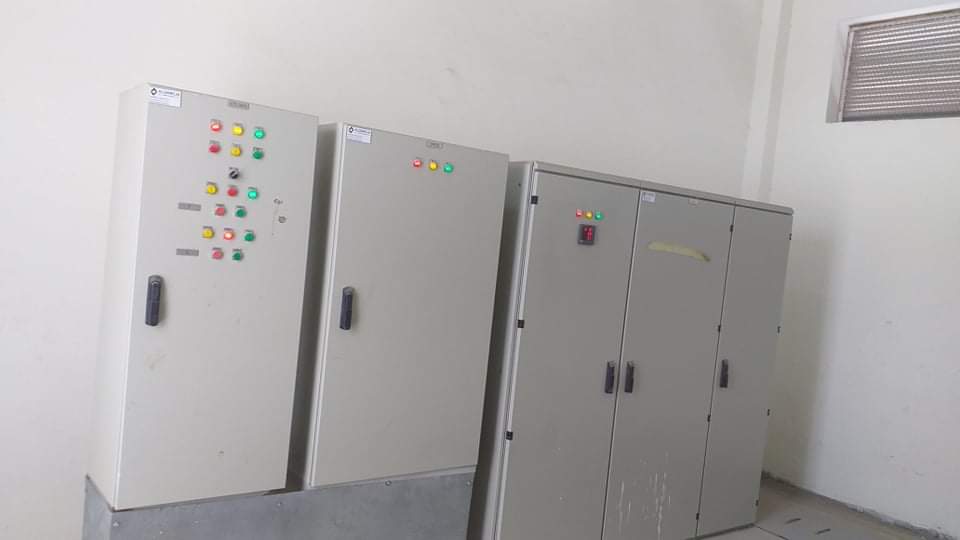

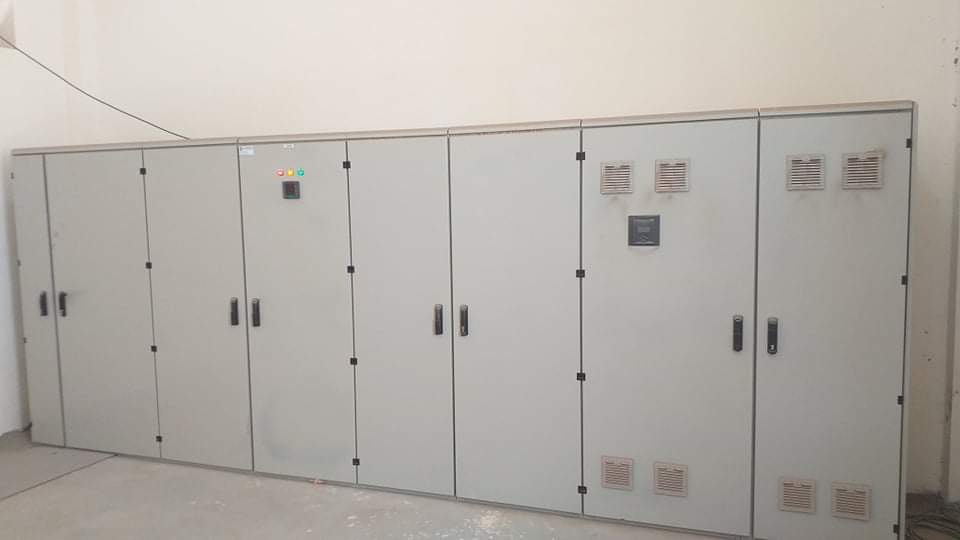

- LV Cable CU1*300 mm2 to connect between transformer and MDB.
- Powder fire extinguishers with sensors 12 KG.
- Exhaust fan 80*80 including thermostat
- MV Terminations 3*240 mm2, 18130 KV
- Cable trays for MV cables and LV cables galvanized with all accessories.
- Earthing pit with maximum 3 Ohm contain with cupper plate, salt coal, and cupper
