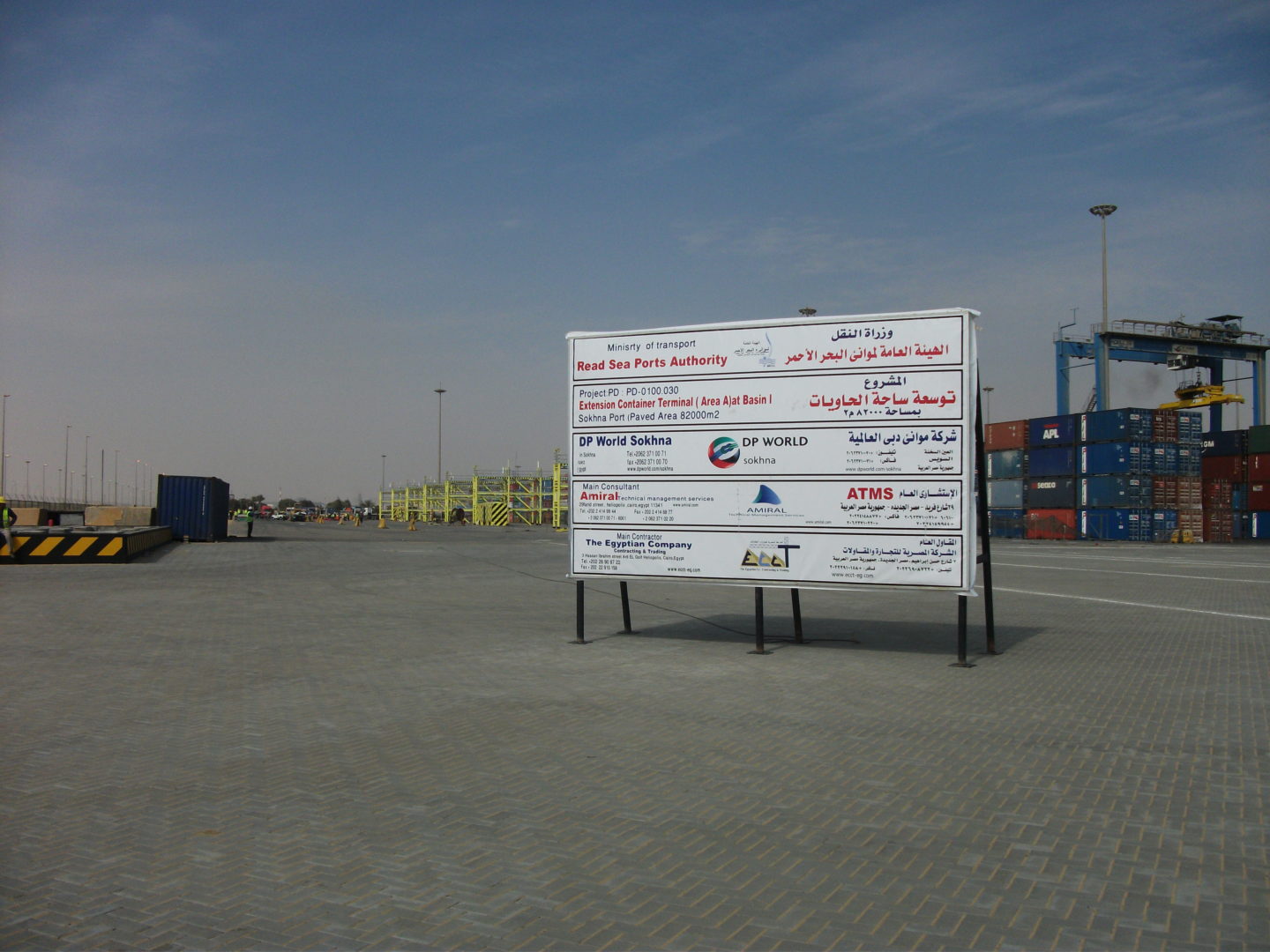

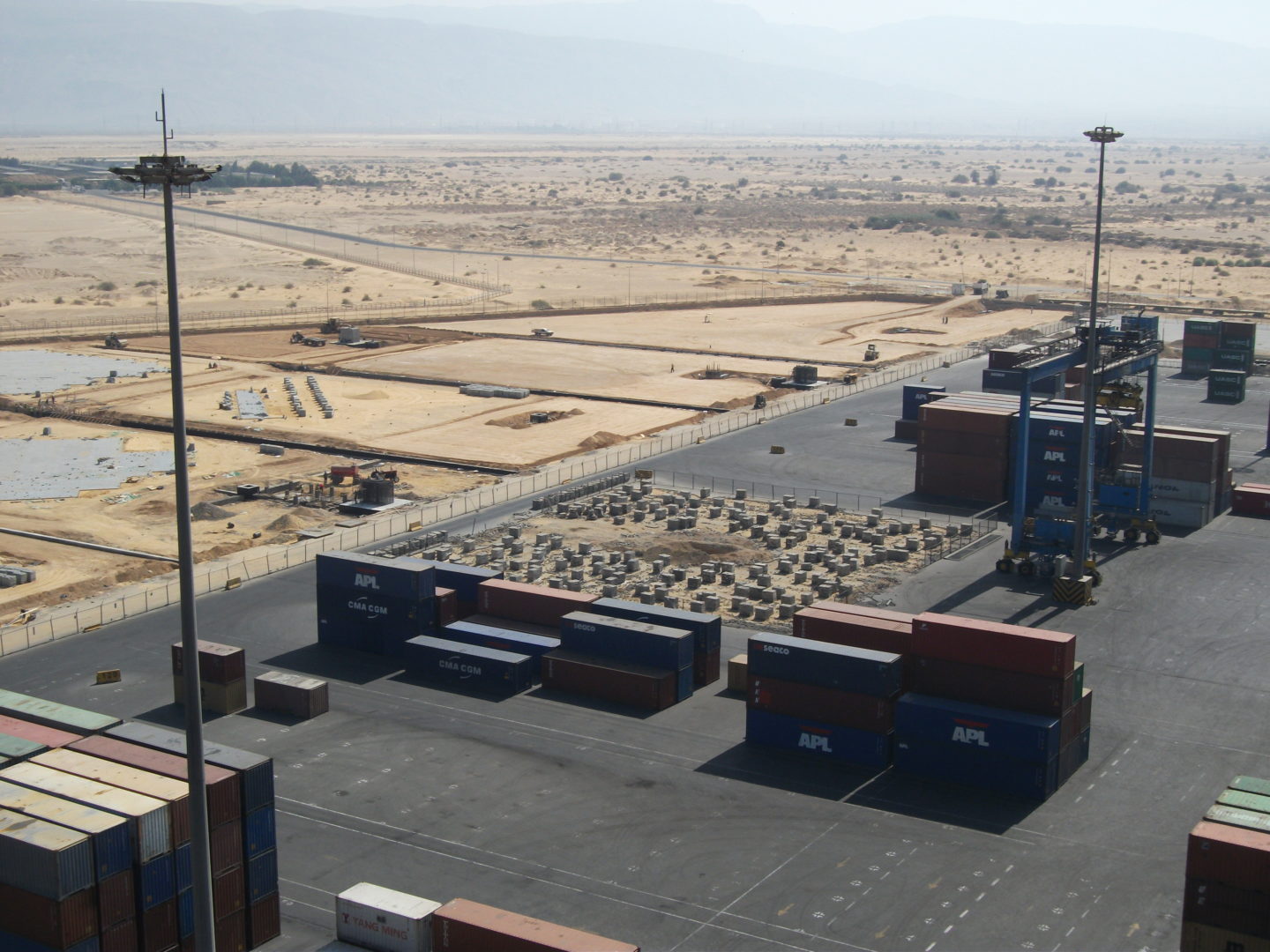

Extension Container Terminal Area A – Basin 1, DP World Sokhna Port, Egypt
Project Information:
Type:
Ports & Marines Infrastructure
Owner:
DP World Sokhna
Architect:
ATMS
Manager:
ATMS
Contract Value:
51 Millions EGP
Status:
Completed (2012 )
Project Description:
Demolishing works for about 3,000 m3 of concrete & many UG utilities.

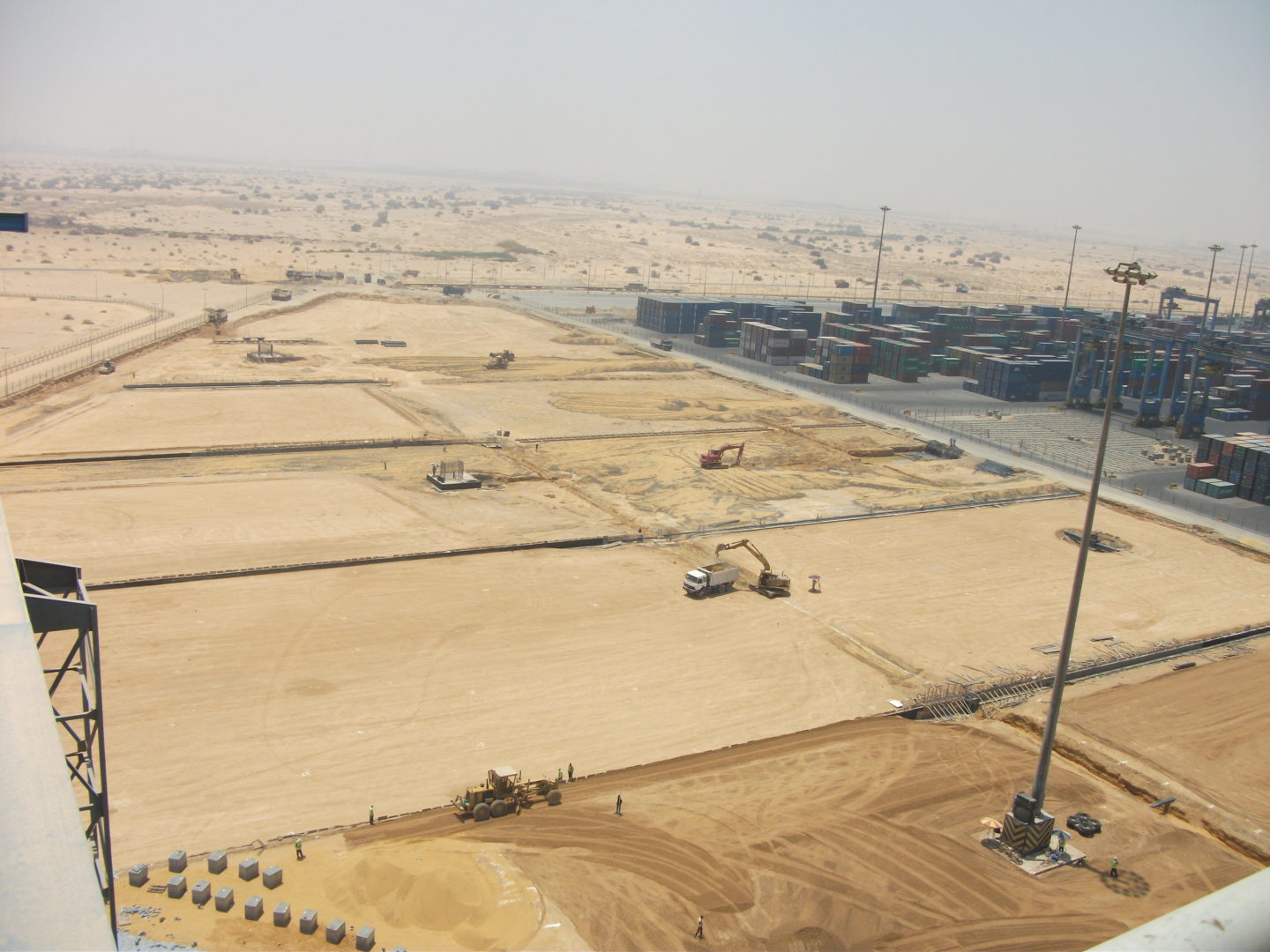

Excavation & transport to dump area of 116,000 m3.

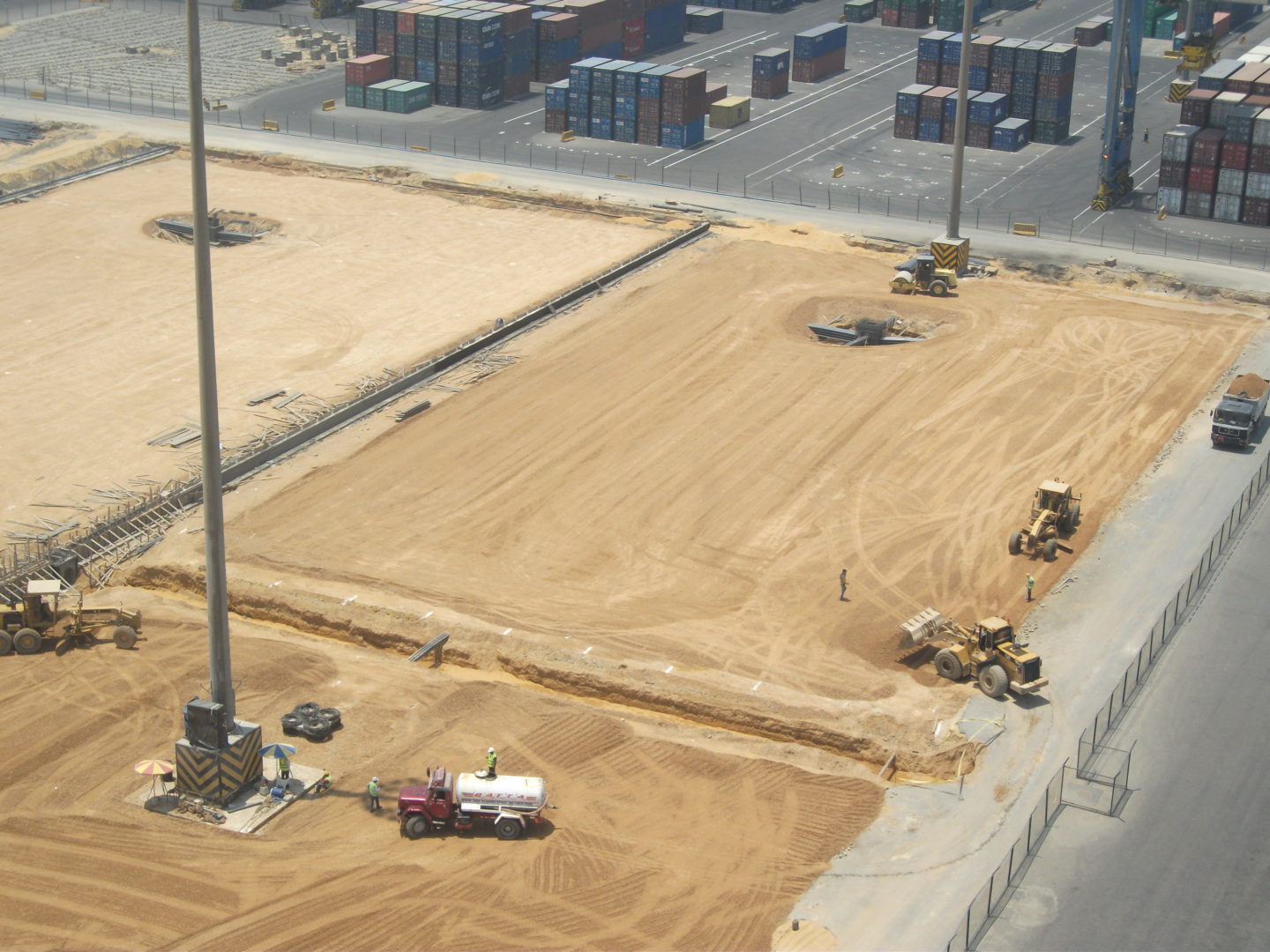

Soil replacement of well graded base coarse of 110,000 m3 in layers.

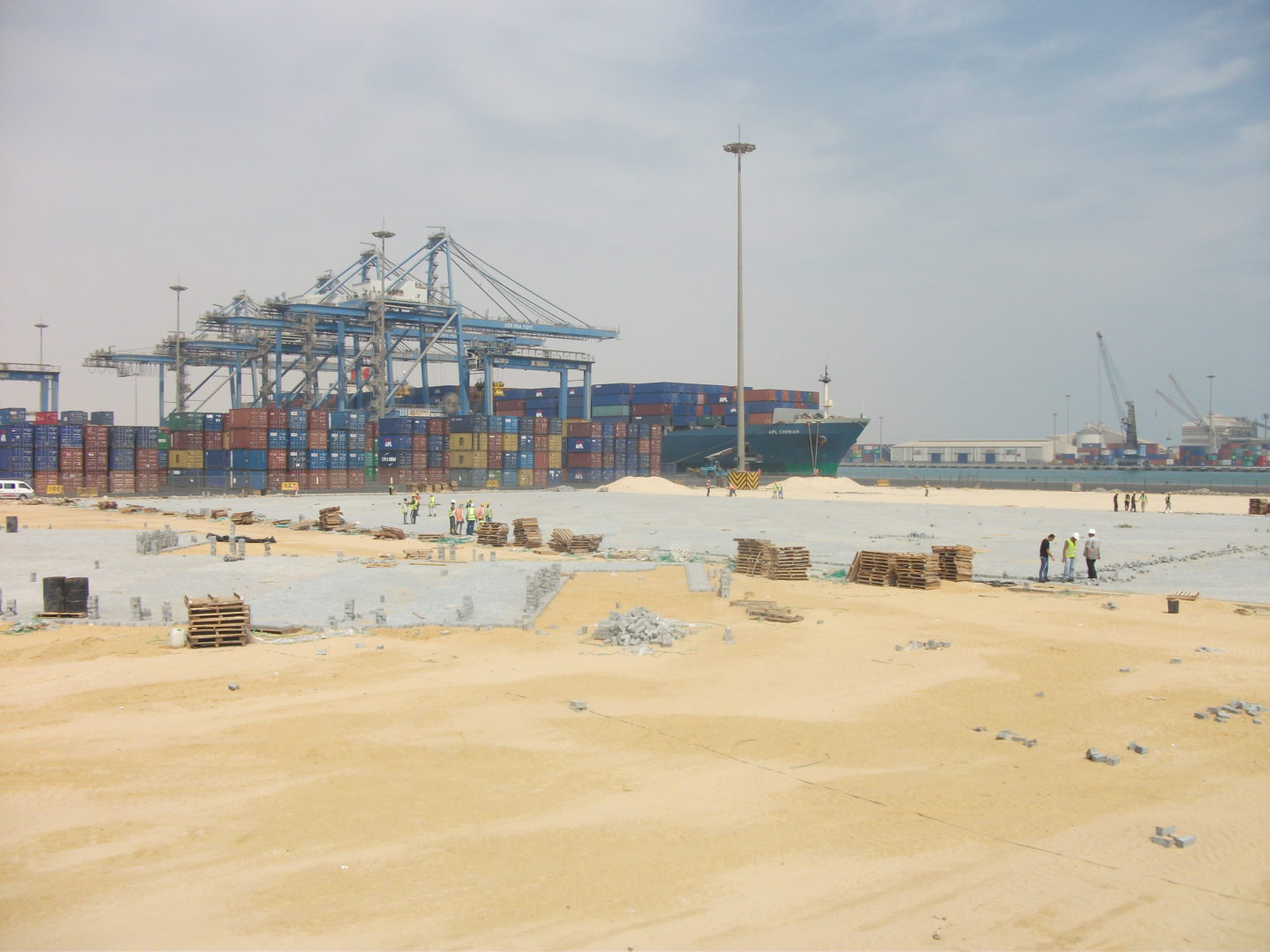

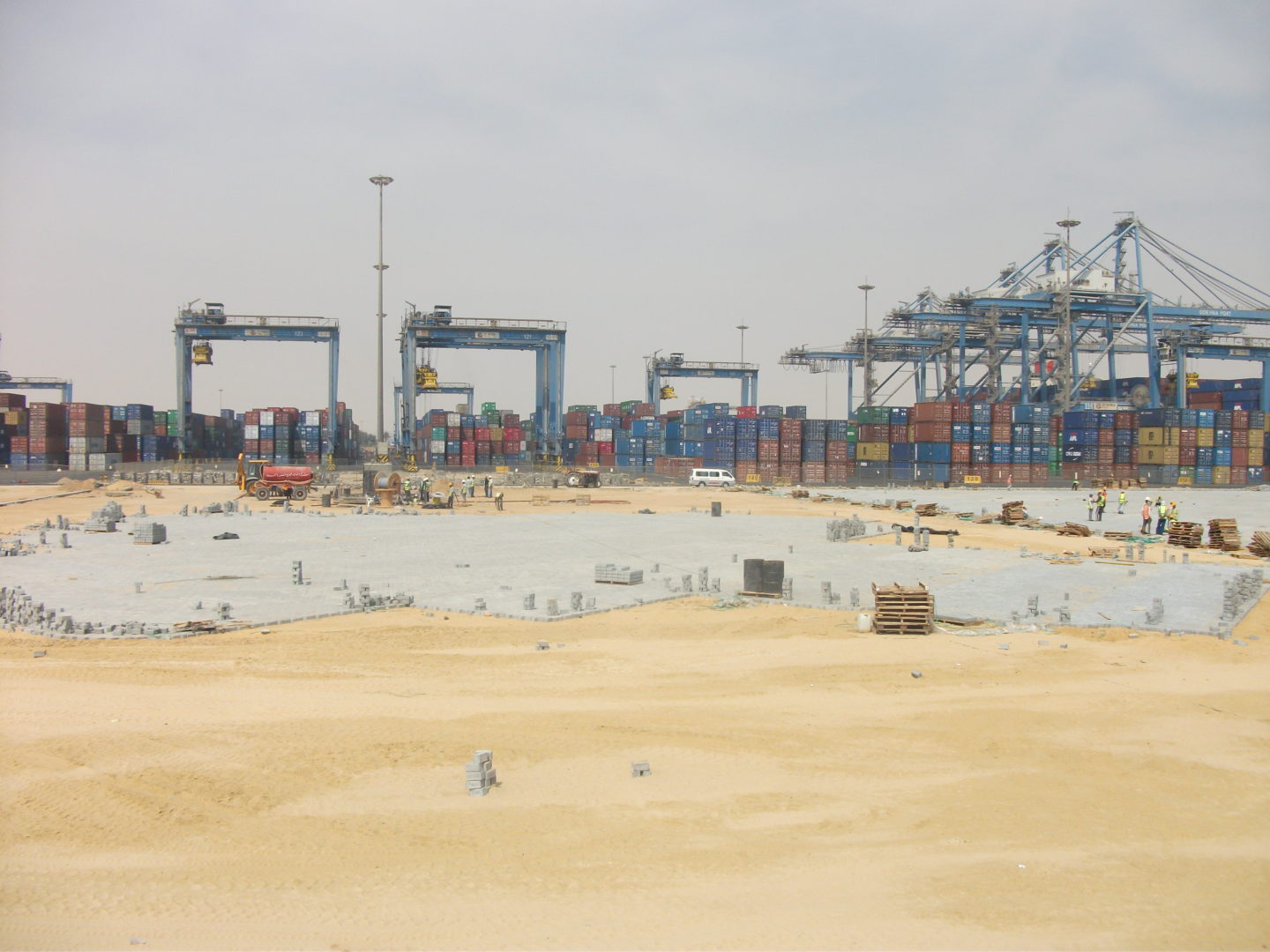

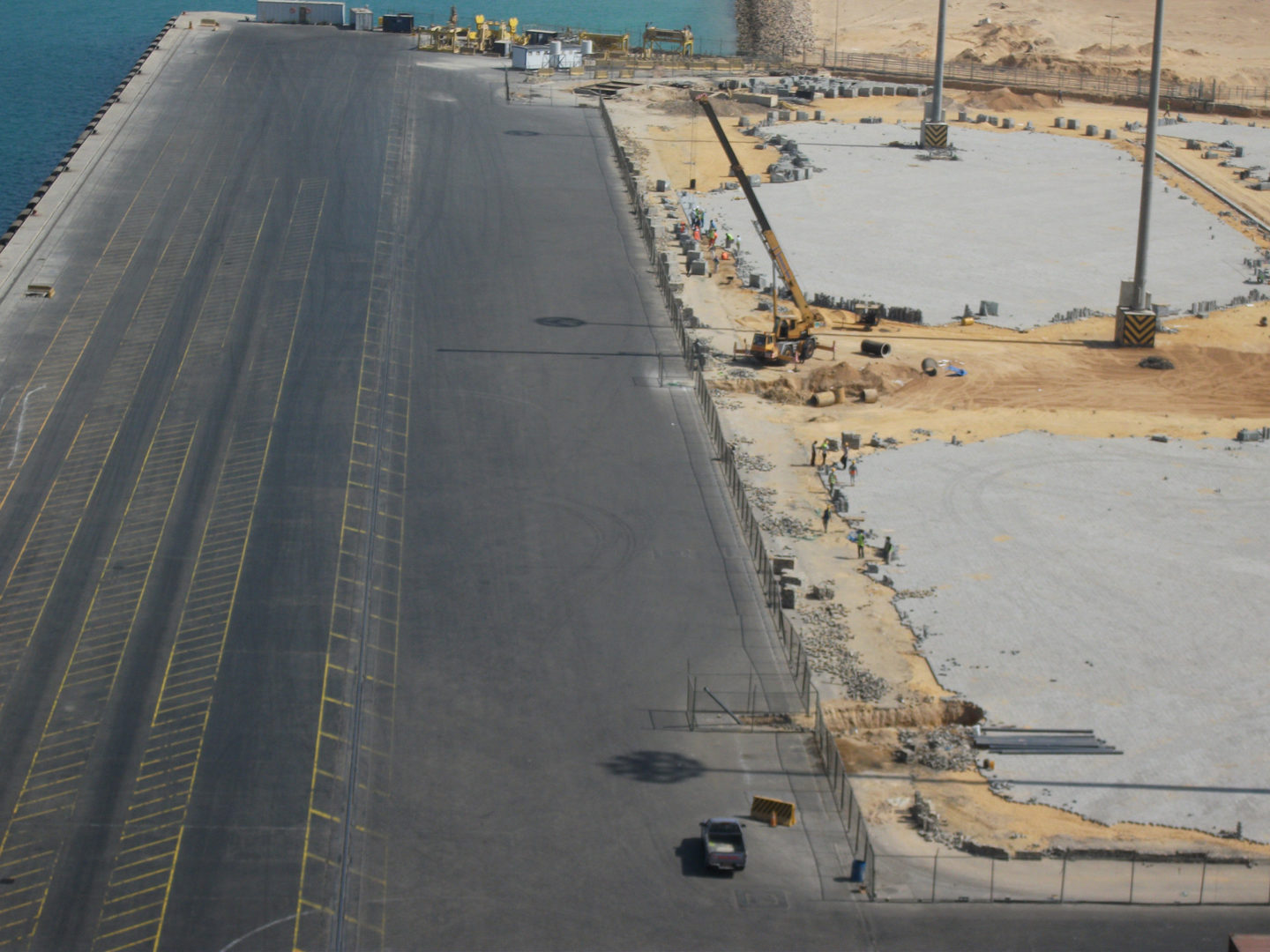

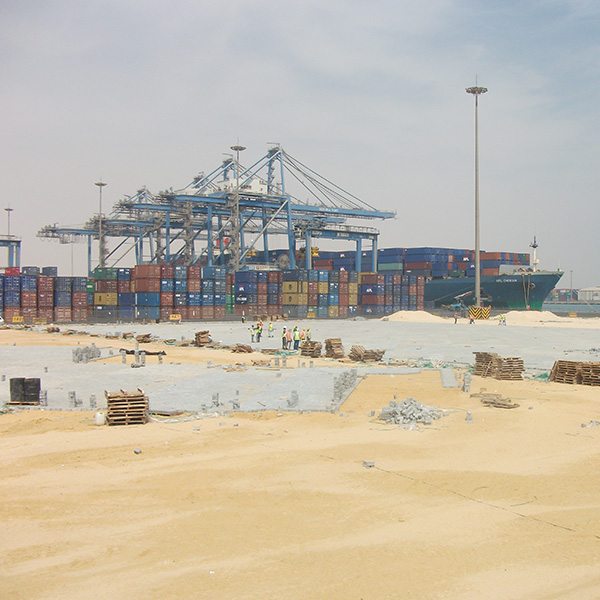

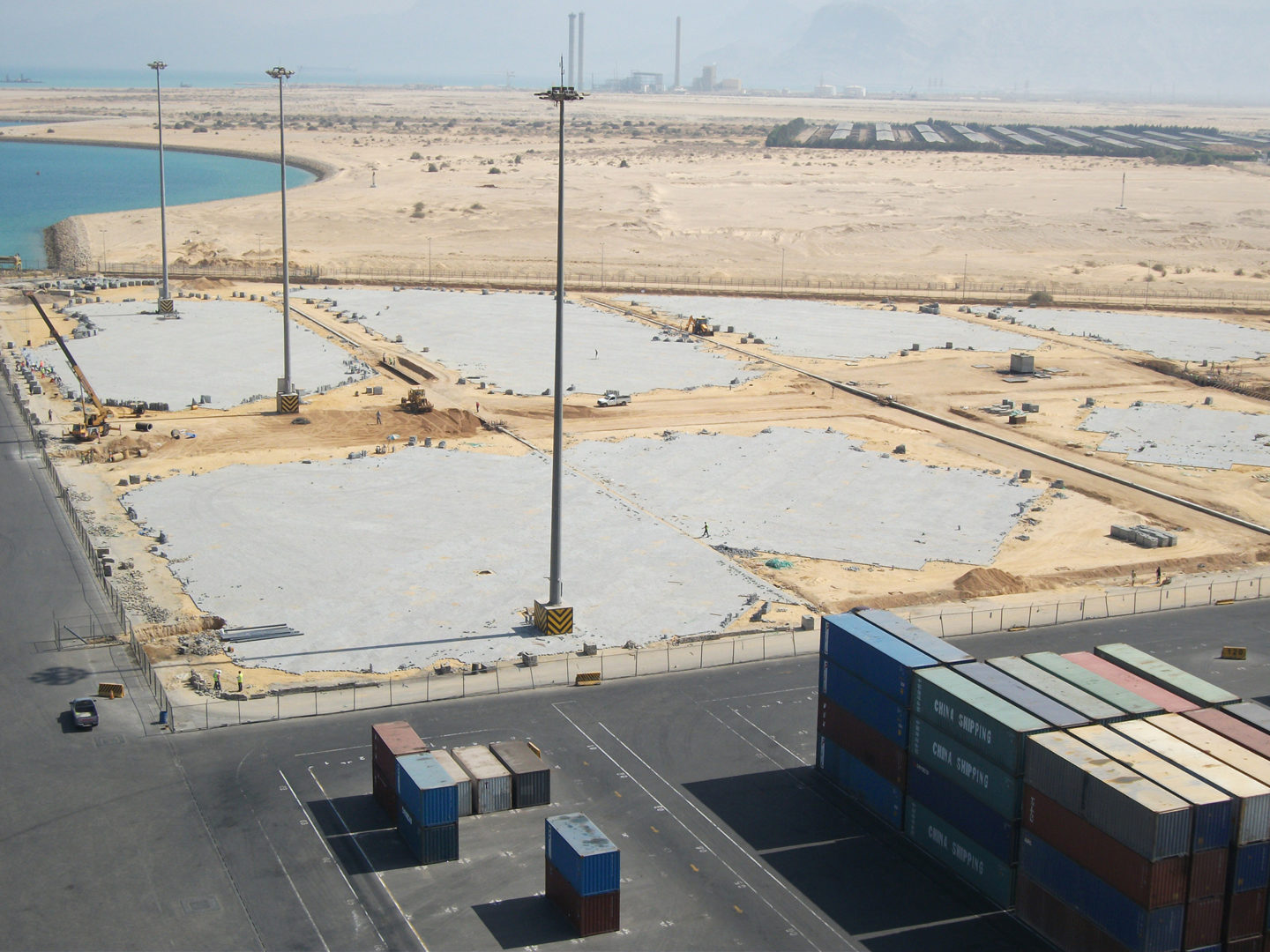

Concrete paver blocks 500 kg/cm2 total area 82,000 M2, complete with roads & slot marking.
Duct banks made of multi PVC pipe inside concrete envelope total 1790 ML.
Electric cables for MV, LV & fiber optic cable, total 7,110 ML complete with RC manholes.

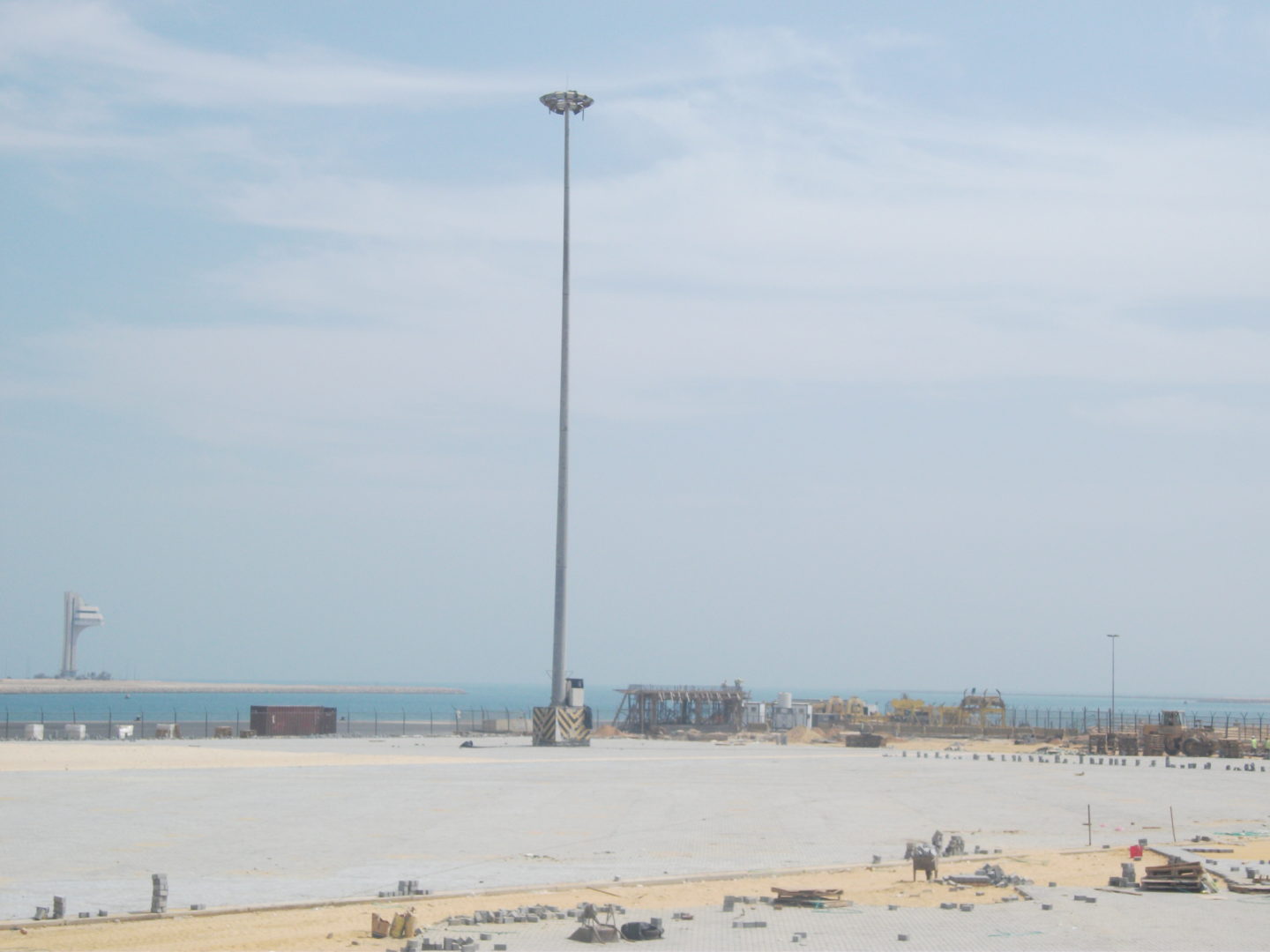

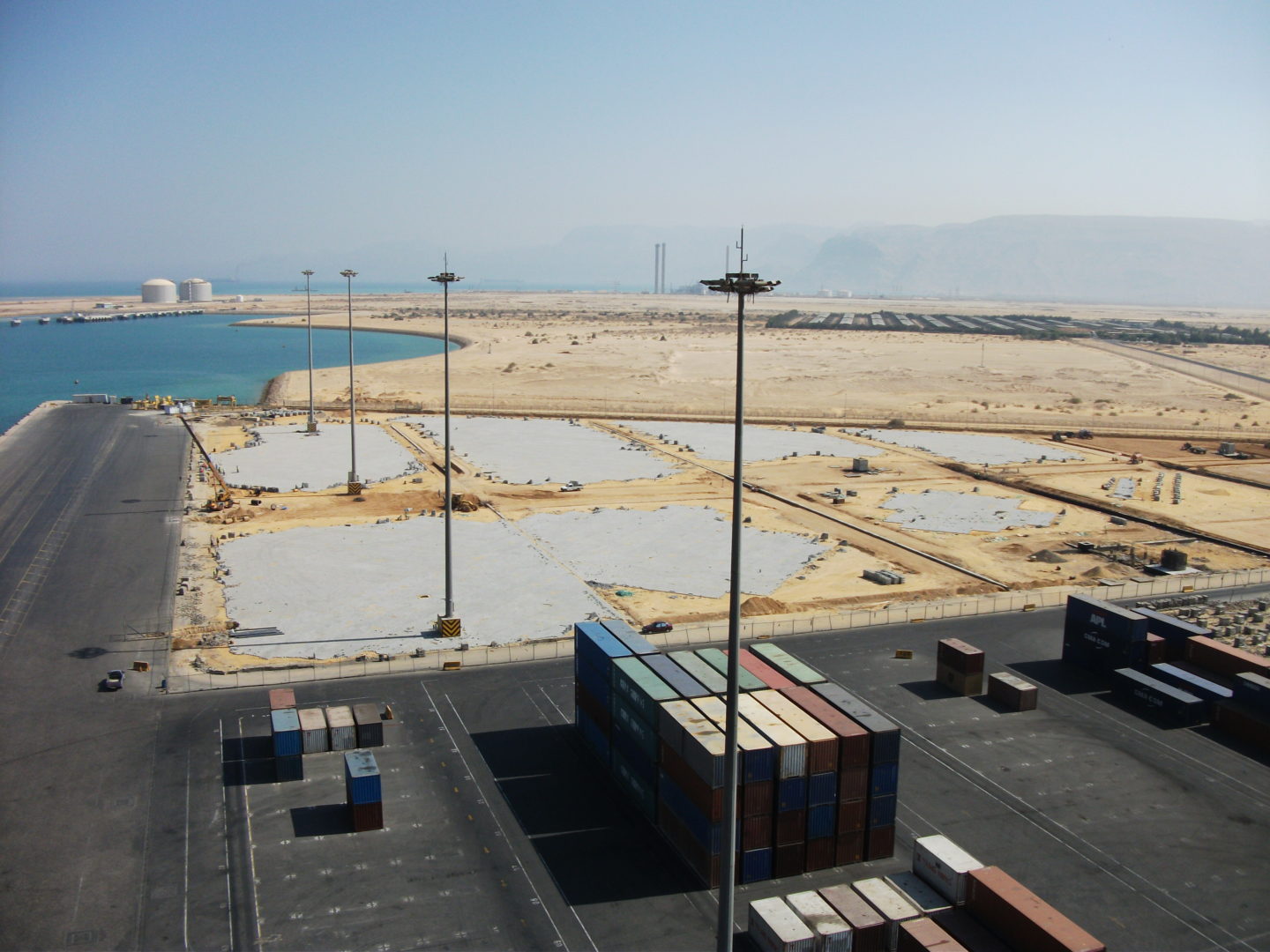

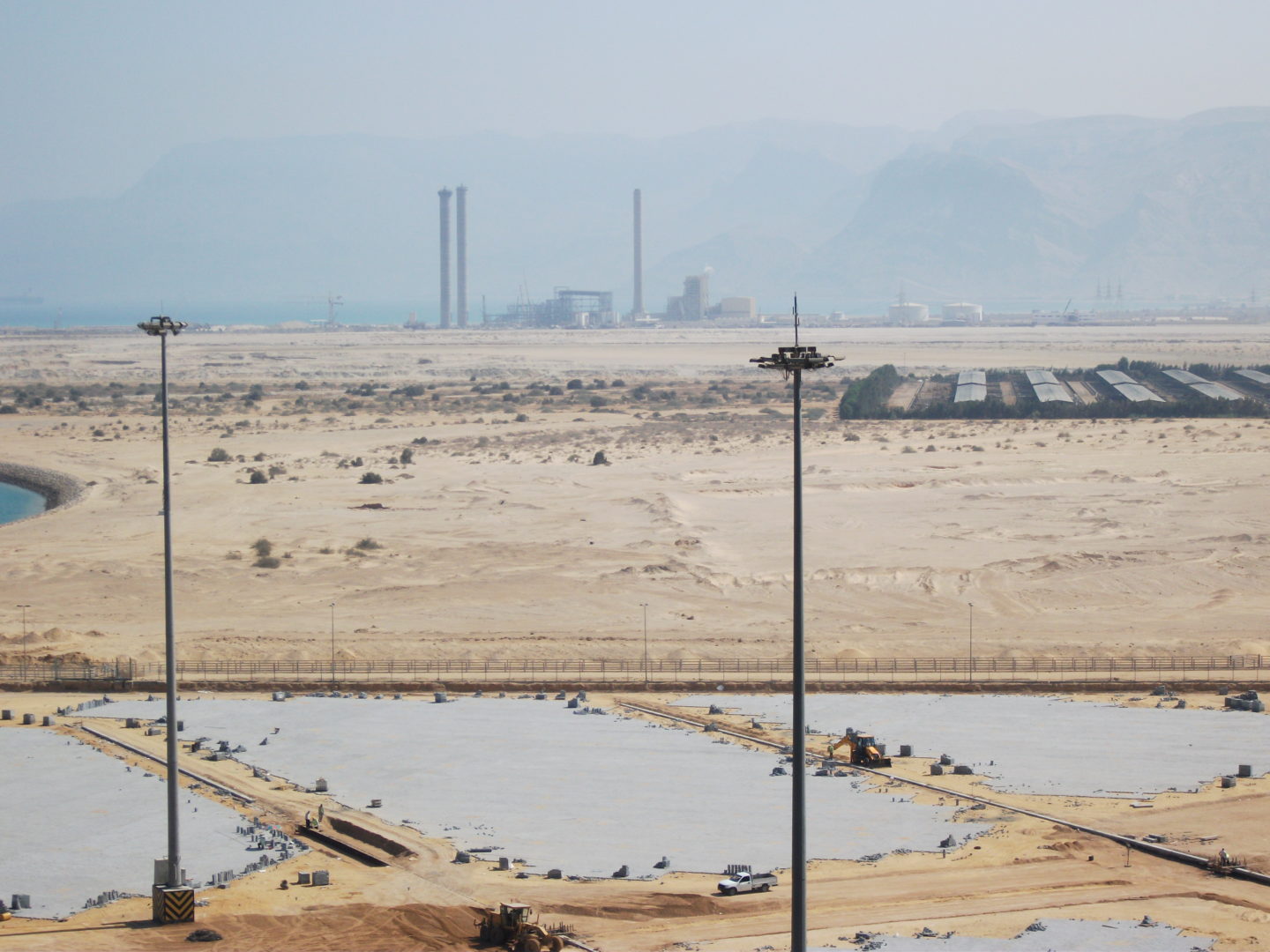

Four high mast 45 ML complete with foundation & lighting fixture.

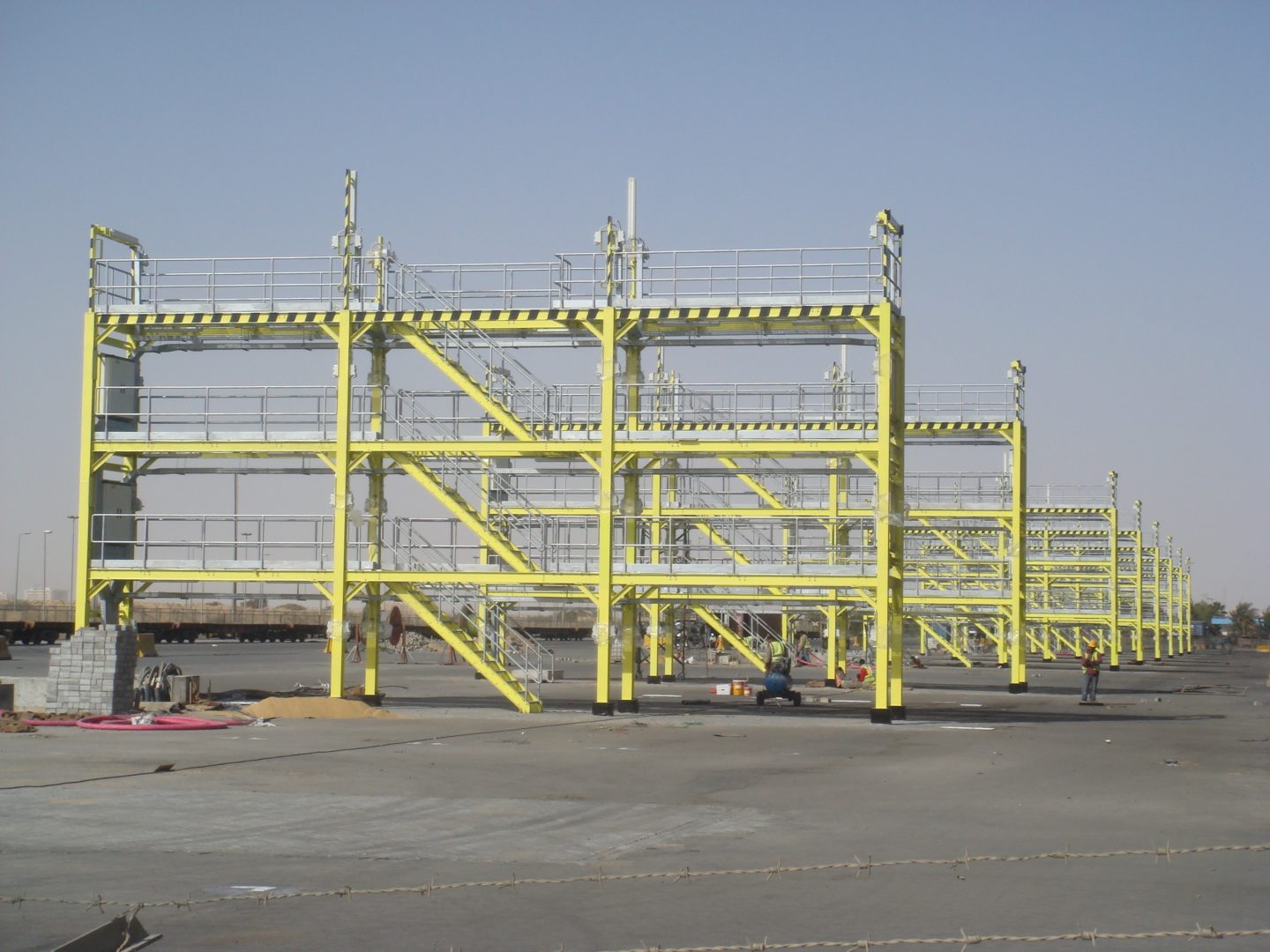

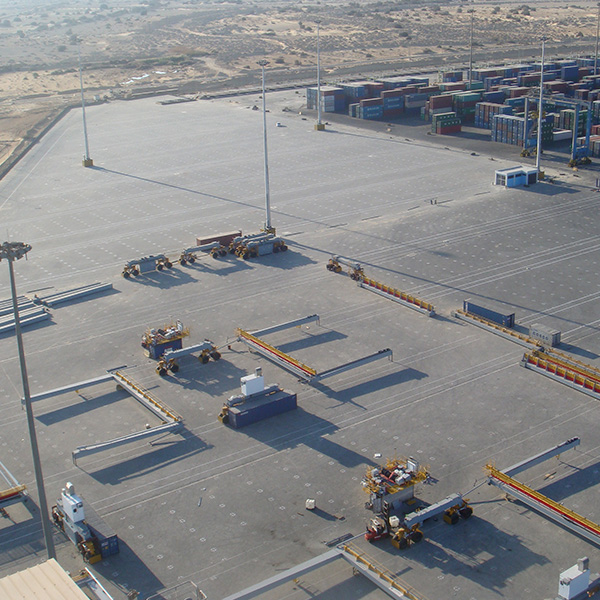

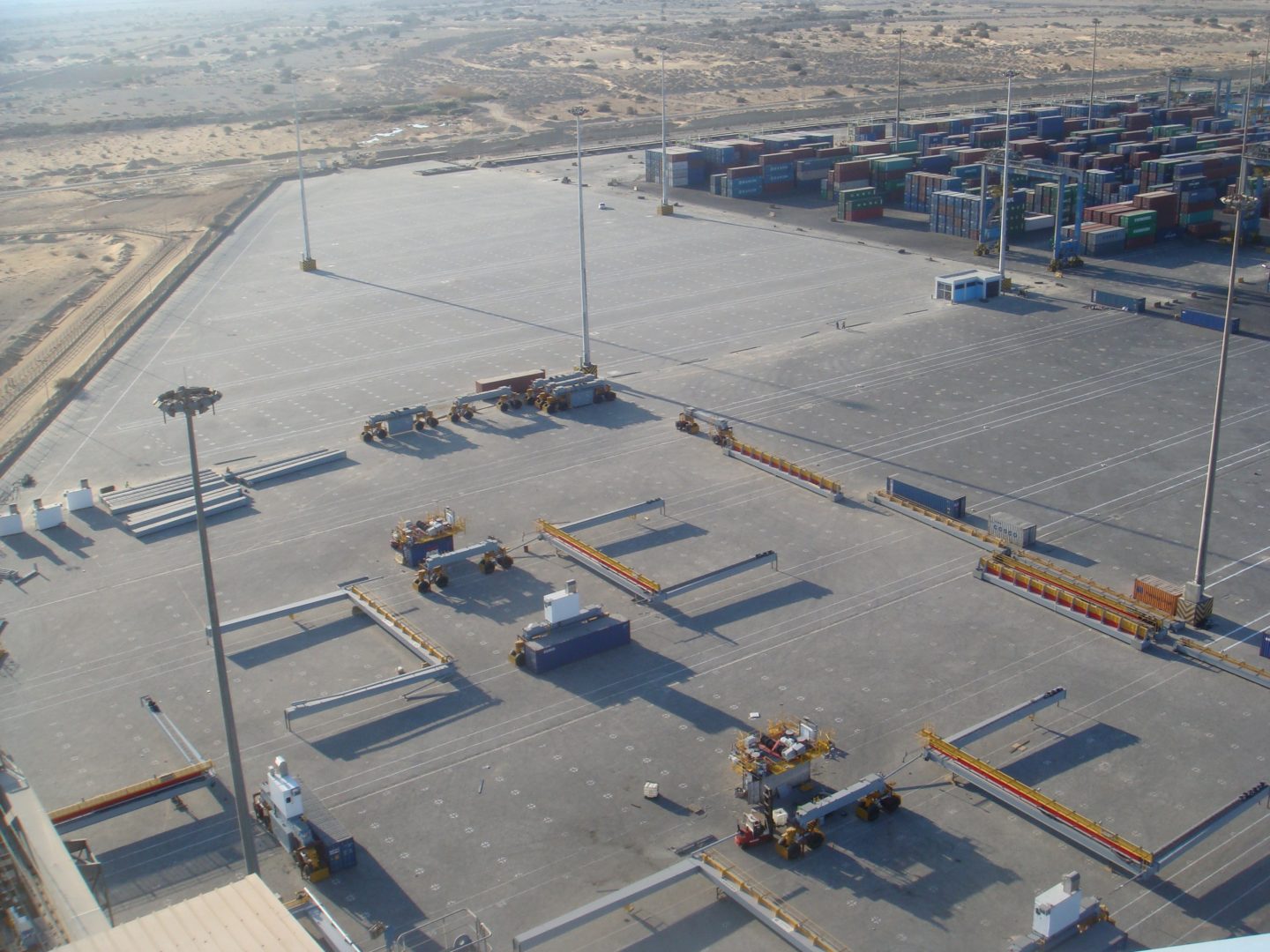

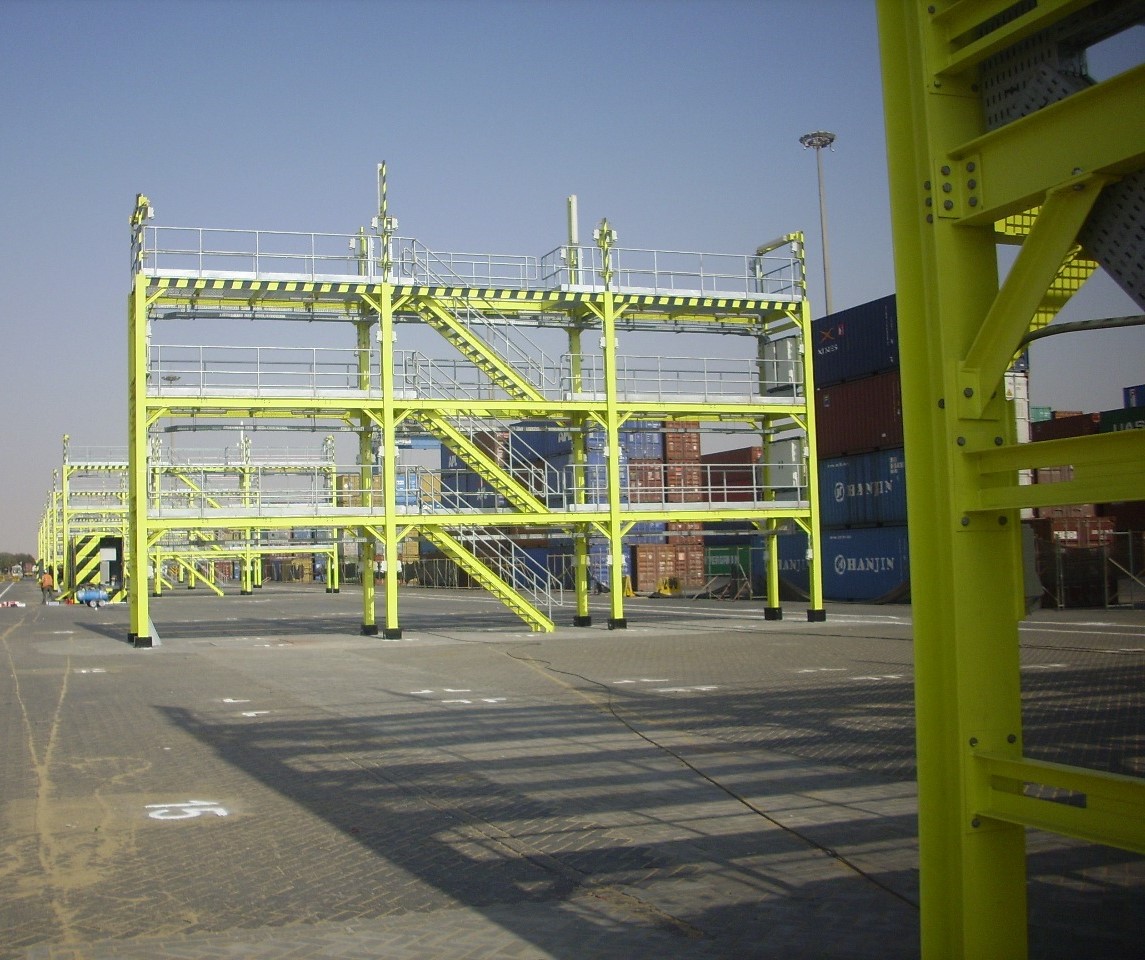

Eight steel structure reefer racks weight 80 ton including RC foundation, cabling, electric sockets, panels & lighting.
Four containerized sub stations complete with 1 MVA transformers by ABB, switchgear, panels by Schnieder.
SCADA system by Siemens for monitoring substations’ switchgears & lighting control.
Firefighting pipe line HDPE 315 mm 640 ML complete with hydrants & manhole.
RC Slot Drain on a 300 mm PVC pipes, drainage pipe line 400-500 mm PVC pipe & 750 mm concrete pipe total 1,265 ML.
Construction of sanitary & substation RC buildings complete with all finishes and RC leakage pit 7.4 m x 20.7 m
